Library› Engine Room› Automation & Control› Level Switch› Endress+Hauser Liquicap M FTI52
Endress+Hauser

Liquicap M FTI52

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified

Liquicap FTI52 is a rope probe for point level detection of liquids that are highly viscous and tend to form build-up. Also used for detection of interface and foam of conductive liquids. Due to its active build-up compensation FTI52 offers maximum reliability and is suited for a wide range of applications thanks to international certificates. The parts in contact with the process are made of corrosion-resistant and FDA-listed materials - this guarantees a high safety standard.

Specifications

Technical data.reference — unverified

UmgebungstemperaturGehäuse F16: –40 … +70 °C (–40 … +158 °F)
KlimaklasseDIN EN 60068-2-38/IEC 68-2-38
SchwingungsfestigkeitDIN EN 60068-2-64/IEC 68-2-64: 20 … 2 000 Hz, 0,01 g2/Hz
SchockfestigkeitDIN EN 60068-2-27/IEC 68-2-27: 30 g Beschleunigung
KabeleinführungMessing vernickelt: ⌀d = 7 … 10,5 mm (0,28 … 0,41 in)
Kabelquerschnittmaximal 2,5 mm2 (14 AWG)
Erdanschluss außerhalb des Gehäusesmaximal 4 mm2 (12 AWG)
Mögliche Messgeräte2-Draht-, AC-Elektronikeinsatz FEI51, DC PNP-Elektronikeinsatz FEI52, 3-Draht-,
Part numberFTI52
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Liquicap M FTI52 is a liquid level measurement device used for pump control and alarm signals.

Applications

  • alarm signals

Features

  • Alarmsignal
Source: Endress+Hauser Liquicap M FTI52 datasheet, p. 46

Options

  • FEI58 NAMUR
Source: Endress+Hauser Liquicap M FTI52 datasheet, p. 2

Standards

  • DIN EN 60068-2-38/IEC 68-2-38
  • DIN EN 60068-2-64/IEC 68-2-64
  • DIN EN 60068-2-27/IEC 68-2-27
Source: Endress+Hauser Liquicap M FTI52 datasheet, p. 17

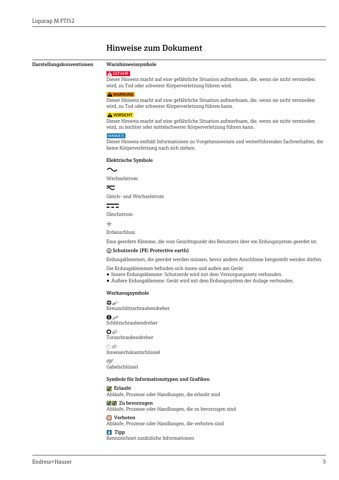

Endress+Hauser Liquicap M FTI52 – Drawing (168968c45462_S2-46 S. 2)
Drawing · 168968c45462_S2-46 · S. 2

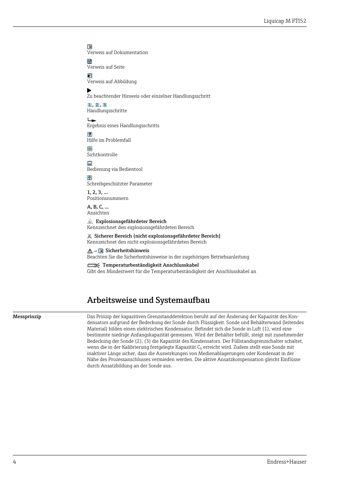

Endress+Hauser Liquicap M FTI52 – Drawing (168968c45462_S2-46 S. 3)
Drawing · 168968c45462_S2-46 · S. 3

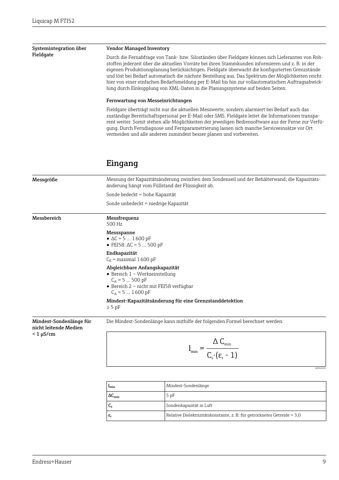

Endress+Hauser Liquicap M FTI52 – Drawing (168968c45462_S2-46 S. 8)
Drawing · 168968c45462_S2-46 · S. 8

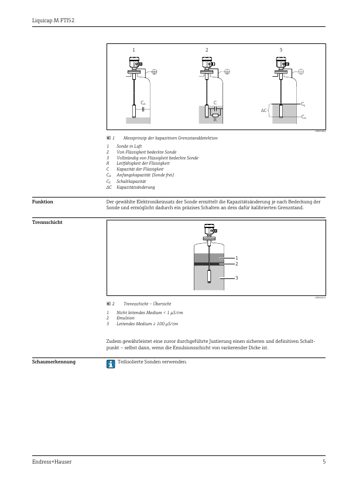

Endress+Hauser Liquicap M FTI52 – Page preview (168968c45462_S2-46 S. 4)
Page preview · 168968c45462_S2-46 · S. 4

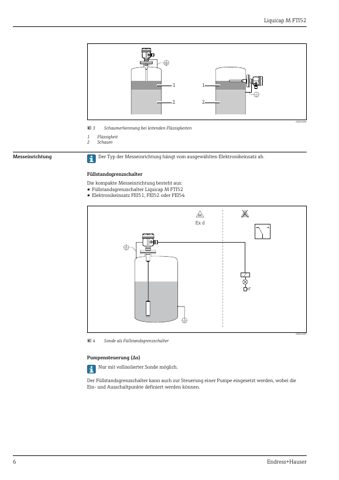

Endress+Hauser Liquicap M FTI52 – Page preview (168968c45462_S2-46 S. 5)
Page preview · 168968c45462_S2-46 · S. 5

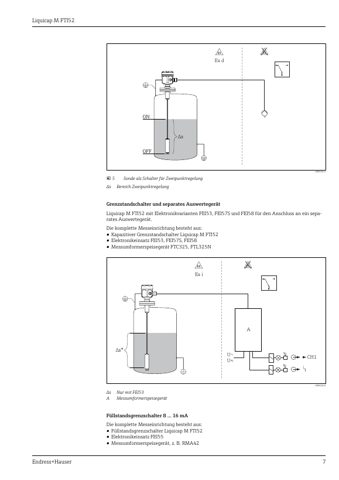

Endress+Hauser Liquicap M FTI52 – Page preview (168968c45462_S2-46 S. 6)
Page preview · 168968c45462_S2-46 · S. 6

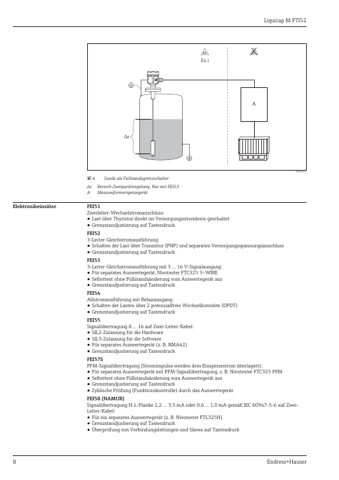

Endress+Hauser Liquicap M FTI52 – Page preview (168968c45462_S2-46 S. 7)
Page preview · 168968c45462_S2-46 · S. 7
Source: Endress+Hauser Liquicap M FTI52 datasheet, p. 10
