Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Solimotion FTR20
Endress+Hauser

Solimotion FTR20

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗

The Solimotion FTR20 flow indicator for bulk solids is a non-contact device based on microwave technology. It is ideally suited for cost-effective monitoring of a mass flow (present or not present). The compact device can be used wherever the cost-effective monitoring of bulk solids movement is required. Individual adjustments to the application can be carried out by means of configurable functions (incl. automatic calibration).

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Supply voltageAC version: 85 ... 253 V, 50/60 Hz DC version: 20 ... 60 V or 20 ... 30 V, 50/60
Power consumptionAC version: max. 4.8 VA DC version: max. 2.2 W or 3 VA
Ambient temperature-40 to +70 °C (-40 to +158 °F)
Ambient pressure80 to 110 kPa (0.8 to 1.1 bar) absolute
Degree of protectionIP66 (IP20 if the housing is open)
Process temperature-40 to +70 °C (-40 to +158 °F) -40 to +450 °C (-40 to +842 °F) with optional hig
Process pressure50 to 680 kPa (0.5 to 6.8 bar) absolute 80 to 510 kPa (0.8 to 5.1 bar) absolute
Weightca. 0,19 kg (M12 Serie 713/763, 2 m)
Material316Ti (1.4571)
FlanschDN40/PN40
D1110 (4.33) mm (in)
D2150 (5.91) mm (in)
D318 (0.71) mm (in)
D18 (0.71) mm (in)
Prozesstemperaturbereich-40 ... +450 °C (-40 ... +842 °F)
Prozessdruckbereich0,5 ... 21 bar (7 ... 305 psi)
Versorgungsspannung85 ... 253 V AC, 50/60 Hz
Leistungsaufnahme9 VA (85 ... 253 V AC, 50/60 Hz)
Umgebungstemperatur-40 ... +70 °C (-40 ... +158 °F)
Relative Luftfeuchtebis zu 100 %
Betriebshöhebis zu 2000 m (6600 ft)
SchutzartIP66
Schockdauer18 ms
Amplitude30 g
Prüftemperatur-40 ... +70 °C
Prozesstemperatur-40 ... +70 °C (-40 ... +158 °F)
Prozesstemperatur mit optionalem Hochtemperaturadapter-20 ... +450 °C (-4 ... +842 °F)
Prozessdruck0,5 ... 6,8 bar (7 ... 99 psi) absolut
Prozessdruck bei Verwendung des optionalen Hochtemperatur-adapters0,8 ... 5,1 bar (12 ... 74 psi) absolut
Prozessdruck bei Verwendung des optionalen Hochdruckadapters0,5 ... 21 bar (7 ... 305 psi) absolut
Part numberFTR20
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A technical specification for the Solimotion FTR20 device, detailing its power supply, environmental and process parameters.Source: Endress+Hauser Solimotion FTR20 datasheet, p. 55

Applications

  • pneumatic and mechanical transport processes

Features

  • various functions for optimal application fit

Options

  • high temperature adapter
  • high pressure adapter

Standards

  • EN10204
Source: Endress+Hauser Solimotion FTR20 datasheet, p. 57

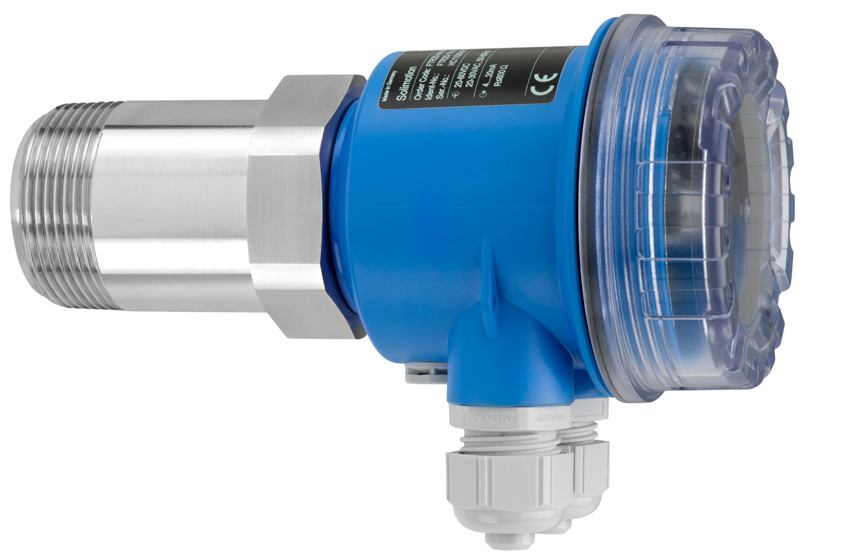

Endress+Hauser Solimotion FTR20 – Photo (41141ed92e3f_S1-1 S. 1)
Photo · 41141ed92e3f_S1-1 · S. 1
Endress+Hauser Solimotion FTR20 – Drawing (41141ed92e3f_S1-1 S. 1)
Drawing · 41141ed92e3f_S1-1 · S. 1

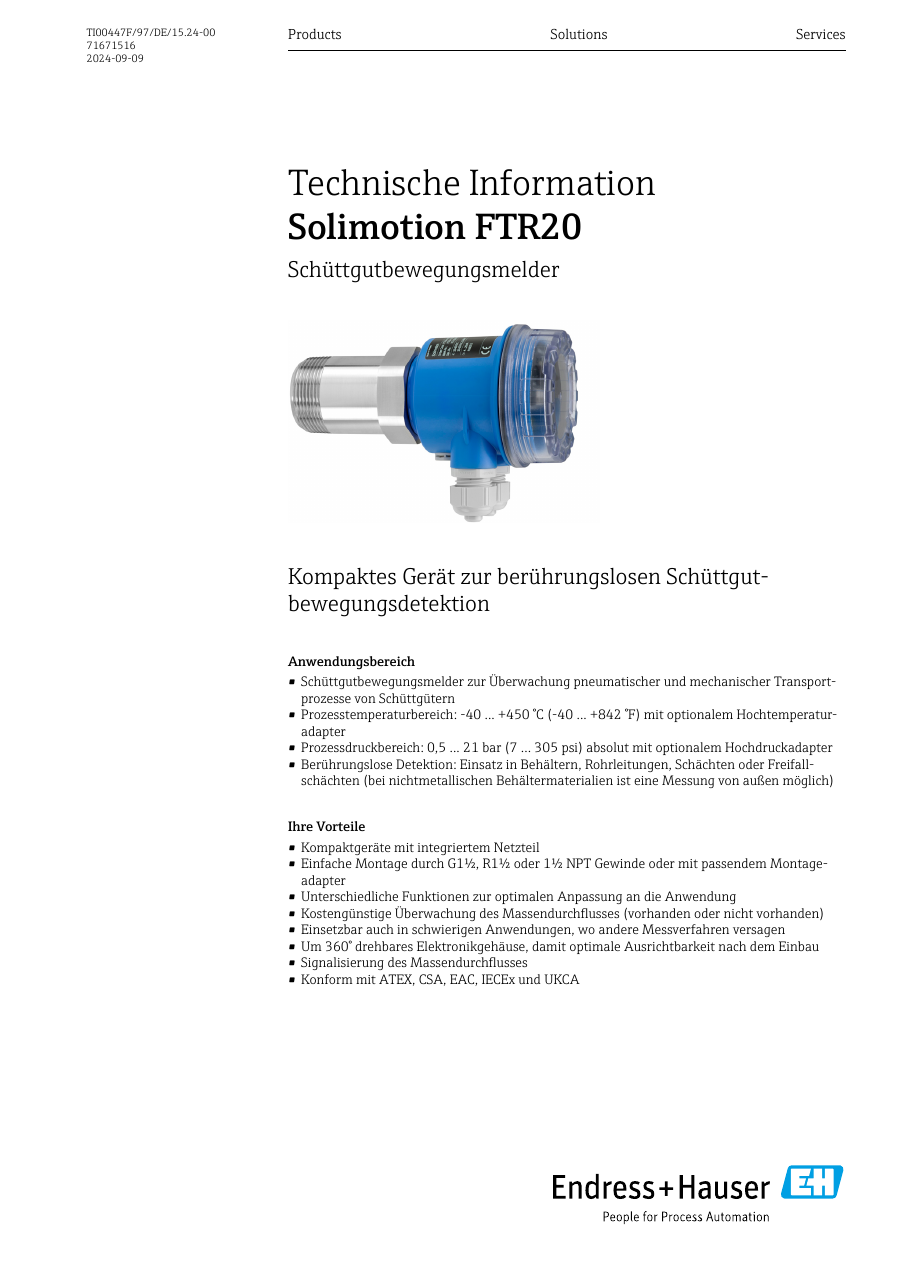

Source: Endress+Hauser Solimotion FTR20 datasheet, p. 1
