Library› Engine Room› Automation & Control› Level Switch› Endress+Hauser Soliswitch FTE20
Endress+Hauser

Soliswitch FTE20

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗

The Soliswitch FTE20 is a versatile rotary paddle point level switch that has been specially developed for bulk solid applications. Its compact design and high resistance enable reliable use even under demanding conditions. The device offers flexible mounting options and supports easy commissioning and adaptation to different material characteristics. In addition, integrated safety functions and international approvals ensure safe operation even in potentially explosive atmospheres.

Specifications

Technical data.reference — unverified

Housing rotation360 °
Switching threshold80 g/l (4.99 lb/ft³)
Minimum80 g/l (4,99 lb/ft³)
Mechanische Lebensdauer500 000 Schaltspiele
Betriebsdruck (abs.)0,5 … 2,5 bar (7,25 … 36,3 psi)
Umgebungstemperaturbereich–20 … 60 °C (–4 … 140 °F)
KlimaklasseEN60654-1, Klasse C2
SchutzartIP66
Stoßfestigkeitnach EN 60068-2-27: 30g
Schwingungsfestigkeitnach EN 60068-2-64: 0,01g²/Hz
Einsatzhöhe< 2 000 m (6 560 ft) über NN
Temperatura-20 ... +80 °C (-4 ... +170 °F)
Pressione+0,5 ... +1,8 bar (+7 ... +25 psi)
Part numberFTE20
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A paddle switch for bulk solids, used to detect full, empty, or refill status in silos and other bulk solid storage areas.

Applications

  • bulk solids handling
  • material level detection

Features

  • safe operation
  • automatic rotation monitoring
  • ex approvals
  • adjustable switching threshold
  • robust plastic housing
  • easy installation
  • weight adjustment without tools
  • 360° rotatable housing

Options

  • automatic rotation monitoring

Standards

  • EN6054-1
  • EN60654-1
  • EN60068-2-27
  • EN60068-2-64
  • IEC 61326-1
Source: Endress+Hauser Soliswitch FTE20 datasheet, p. 25

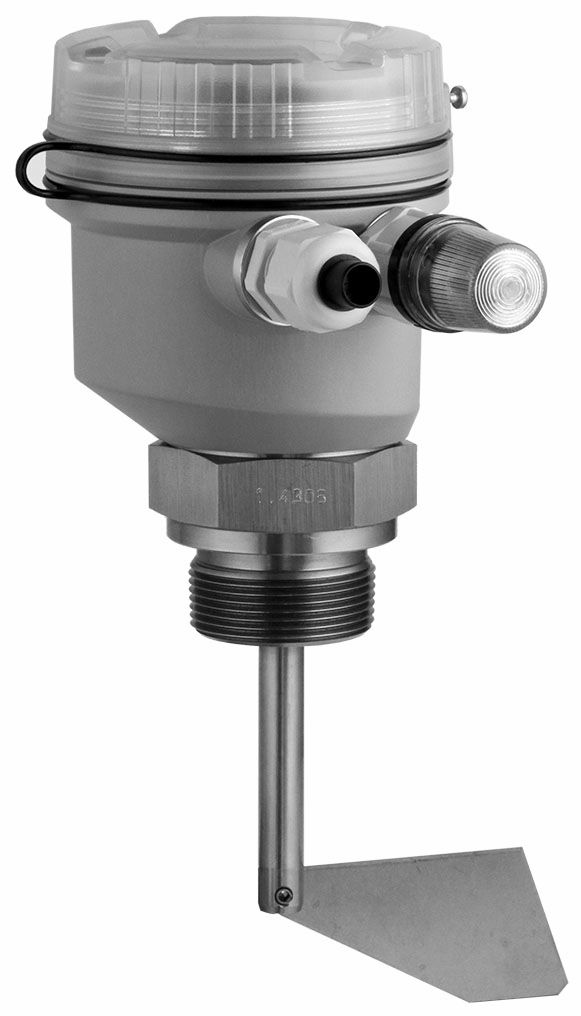

Endress+Hauser Soliswitch FTE20 – Photo (fd550e497f12_S1-1 S. 1)
Photo · fd550e497f12_S1-1 · S. 1

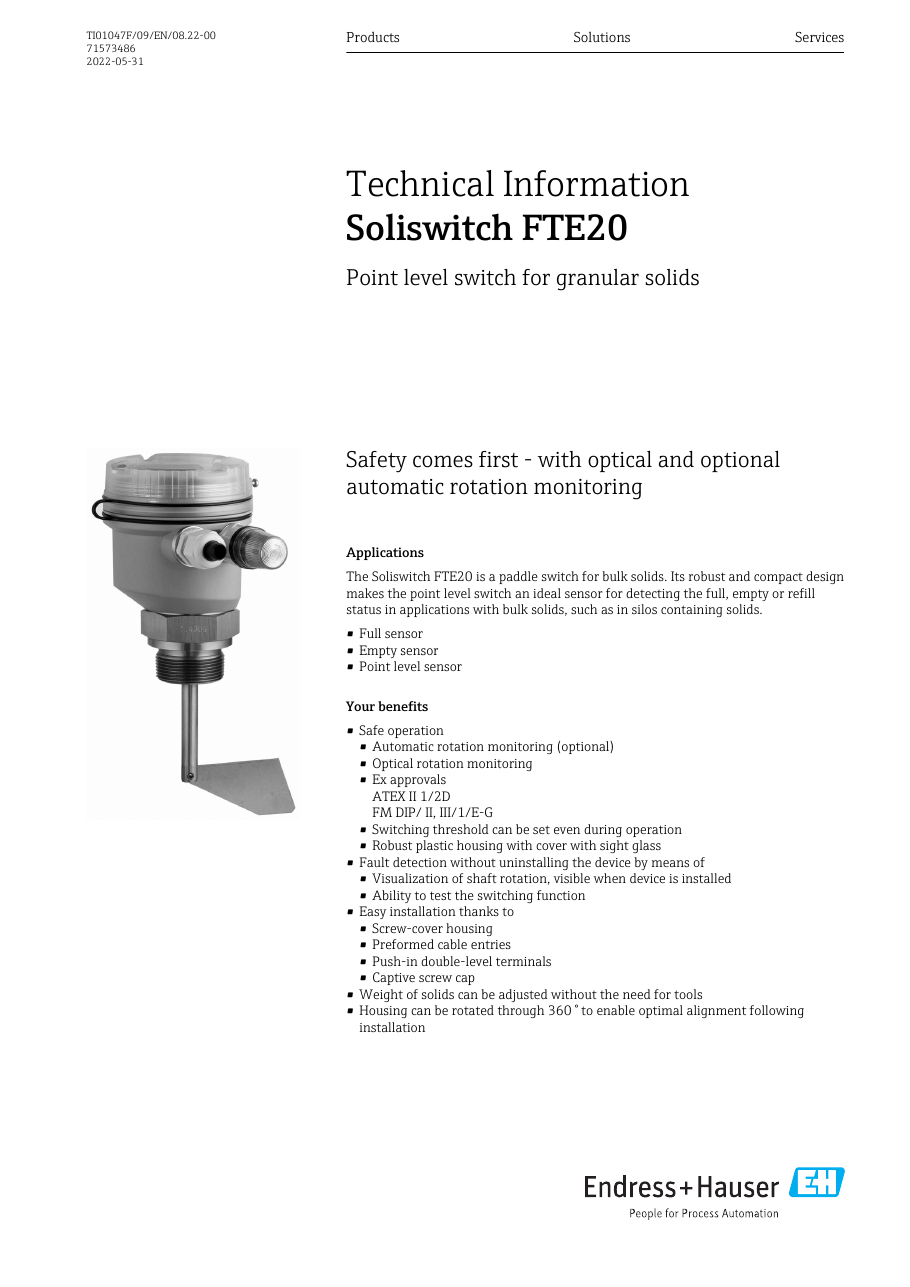

Endress+Hauser Soliswitch FTE20 – Photo (05ec3075c7b2_S1-1 S. 1)
Photo · 05ec3075c7b2_S1-1 · S. 1
Endress+Hauser Soliswitch FTE20 – Drawing (fd550e497f12_S1-1 S. 1)
Drawing · fd550e497f12_S1-1 · S. 1
Endress+Hauser Soliswitch FTE20 – Drawing (05ec3075c7b2_S1-1 S. 1)
Drawing · 05ec3075c7b2_S1-1 · S. 1

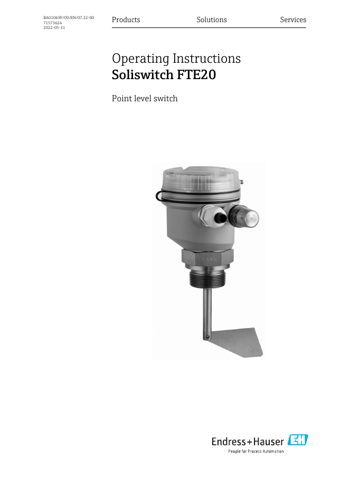

Endress+Hauser Soliswitch FTE20 – Drawing (dfe3a151b6d7_S1-1 S. 1)
Drawing · dfe3a151b6d7_S1-1 · S. 1

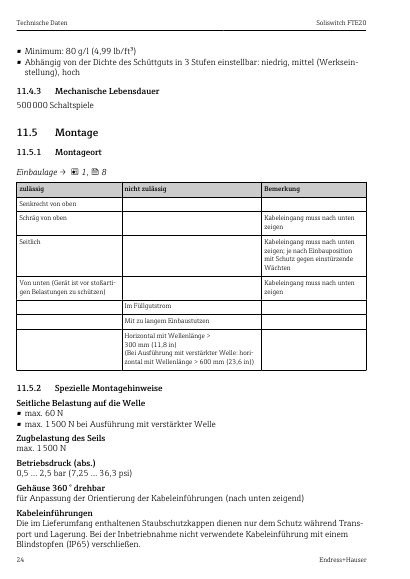

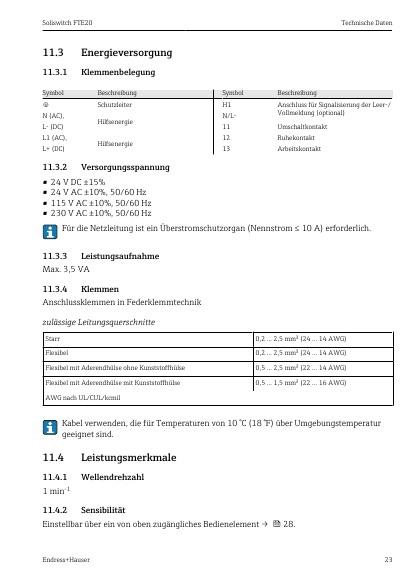

Endress+Hauser Soliswitch FTE20 – Page preview (547efe545bf8_S12-25 S. 12)
Page preview · 547efe545bf8_S12-25 · S. 12

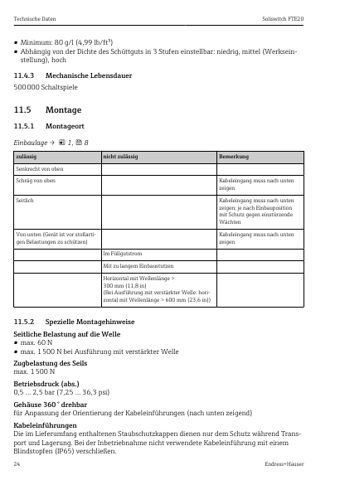

Endress+Hauser Soliswitch FTE20 – Page preview (547efe545bf8_S12-25 S. 13)
Page preview · 547efe545bf8_S12-25 · S. 13

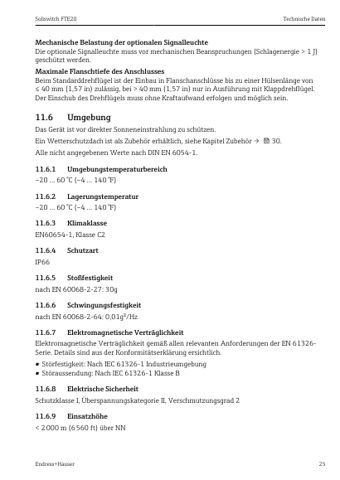

Endress+Hauser Soliswitch FTE20 – Page preview (547efe545bf8_S12-25 S. 14)
Page preview · 547efe545bf8_S12-25 · S. 14
Source: Endress+Hauser Soliswitch FTE20 datasheet, p. 1
