Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Levelflex FMP51
Endress+Hauser

Levelflex FMP51

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified

Levelflex FMP51 for level measurement even under extreme process conditions like high temperature and high pressure in the process industry. FMP51 offers maximum reliability even in case of moved surface and foam or when numerous tank baffles interfere with the measurement. Levelflex FMP51 is used for continuous level measurement of liquids, pastes and slurries but also for interface measurement. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Material316L
Pipe diameterDN80/3" or DN100/4"
Probe length tolerancesabove [m (ft)] — 1 (3.3) 3 (9.8) 6 (20) up to [m (ft)] 1 (3.3) 3 (9.8) 6 (20) —
Surface roughness of AlloyC coated flangesRa = 3.2 μm; lower surface roughness available on request.
La4mm, 316L, max. 150mm nozzle
Lb1/6", 316L, max. 6in nozzle
Mb4mm, 316L, max. 300mm nozzle
Md1/6", 316L, max. 12in nozzle
Maximale Prozesstemperatur150 °C
Durchmesser D20 mm
Sensoradapter304 (1.4301)
Klemme316L (1.4404); Schraube, A4-70
Schlaufe316 (1.4401); Crimphülse, Aluminium; Typenschild, 304 (1.4301)
Maximale Transportgewicht18 kg (39.6 lbs)
max. Drehwinkel350
Schraubenkraft1,5 Nm
Zulässiger Prozesstemperaturbereich–200 … +250 °C (–328 … +482 °F)
Sonde8 mm (0,3 in)
Temperatur-40 a +200 °C
Temperatura-40 ... +200 °C (-40 ... +392 °F)
Pressionefino a +40 bar (fino a +580 psi)
Rope diameter4 mm
Part numberFMP51
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Levelflex FMP51 is a radar level gauge with accessories including a centering weight suitable for DN80/3" or DN100/4" pipes.

Applications

  • liquid level measurement

Features

  • suitable for DN80/3" or DN100/4" pipes
  • material 316L
  • centering weight for rope diameter 4 mm

Options

  • different probe lengths
  • various process connections
  • custom surface roughness
Source: Endress+Hauser Levelflex FMP51 datasheet, p. 56

Standards

  • IEC 61010
Source: Endress+Hauser Levelflex FMP51 datasheet, p. 18

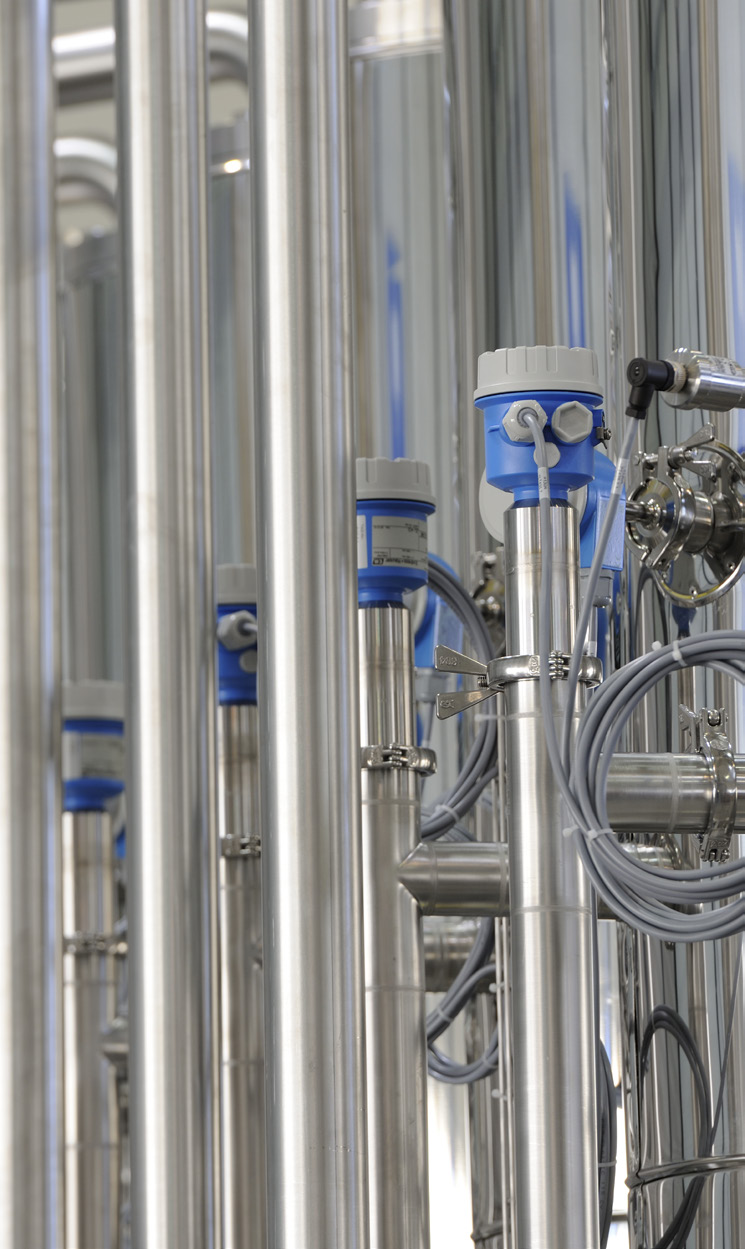

Endress+Hauser Levelflex FMP51 – Photo (278ffb17f138_S7-58 S. 7)
Photo · 278ffb17f138_S7-58 · S. 7

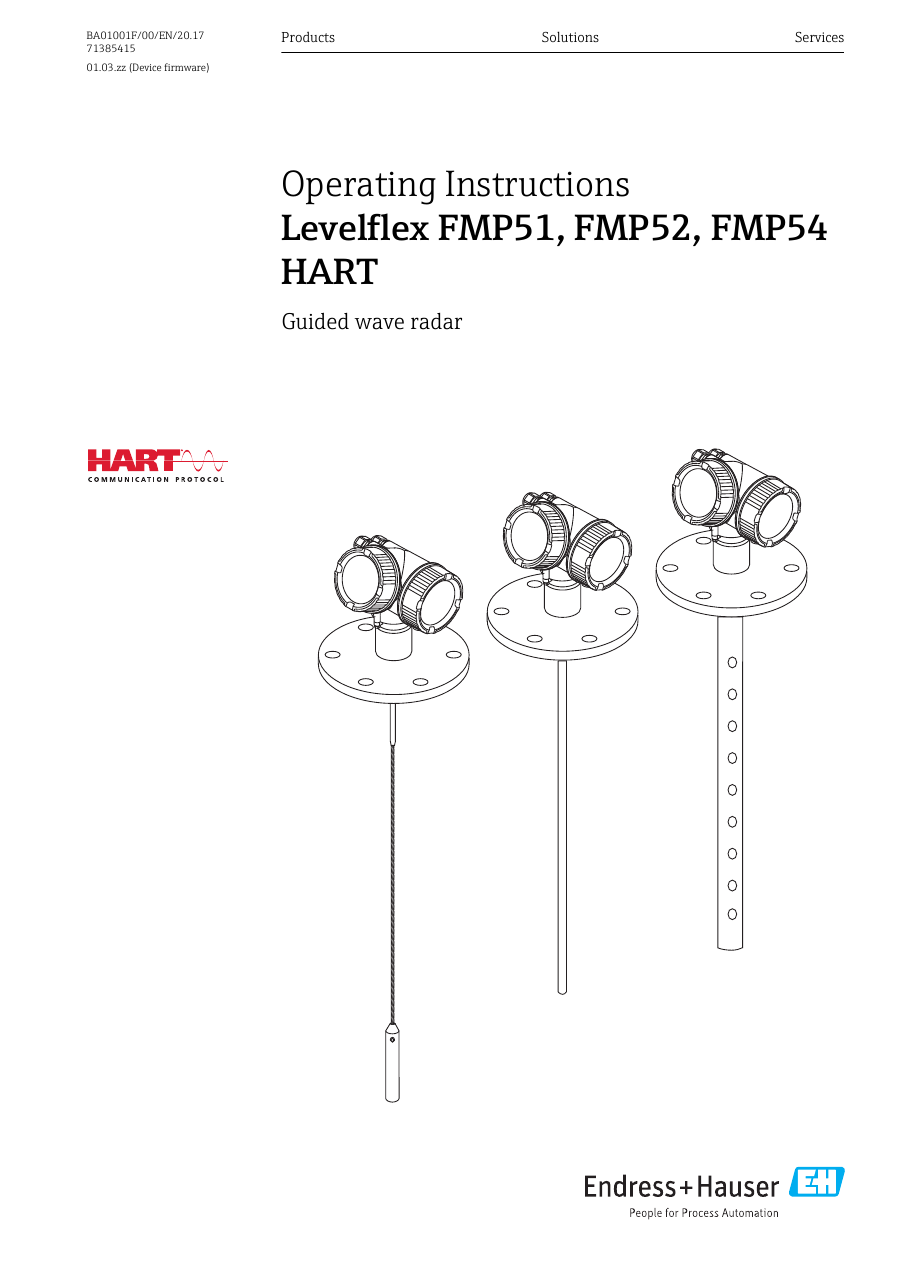

Endress+Hauser Levelflex FMP51 – Drawing (a2e8b83ea135_S1-166 S. 1)
Drawing · a2e8b83ea135_S1-166 · S. 1

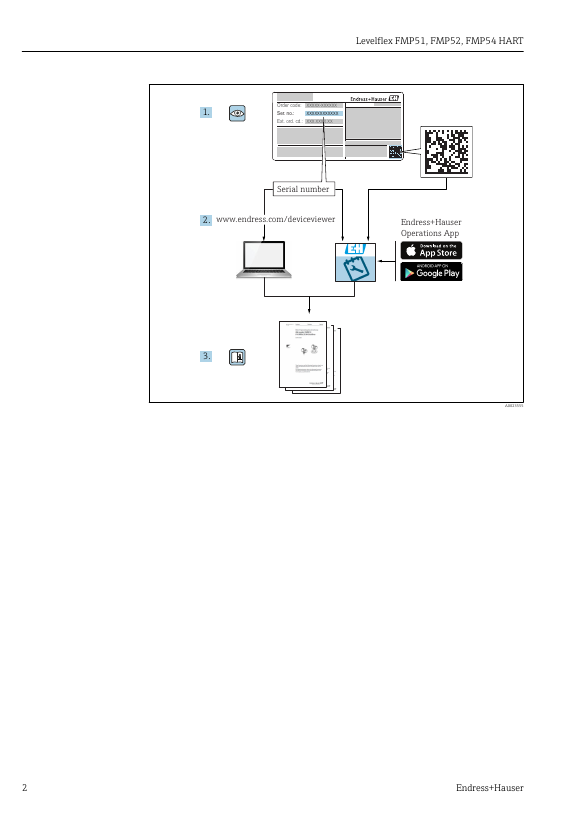

Endress+Hauser Levelflex FMP51 – Page preview (a2e8b83ea135_S1-166 S. 2)
Page preview · a2e8b83ea135_S1-166 · S. 2

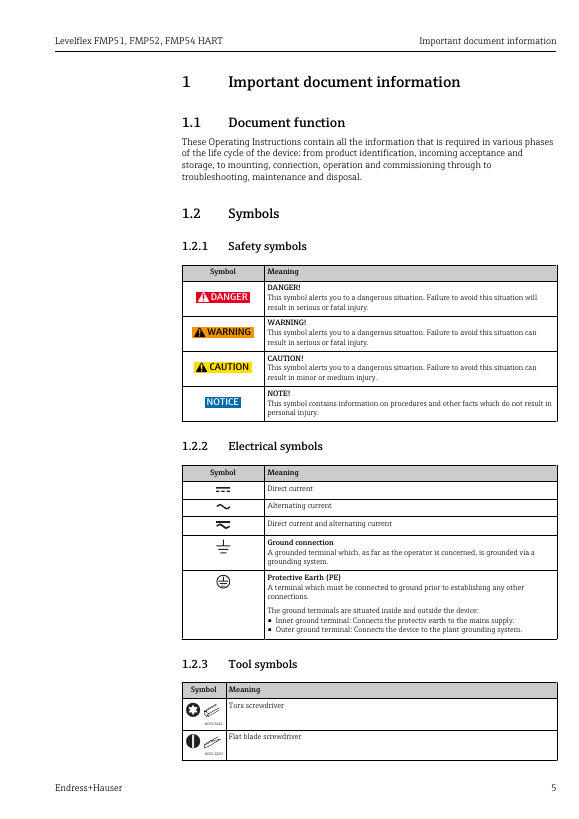

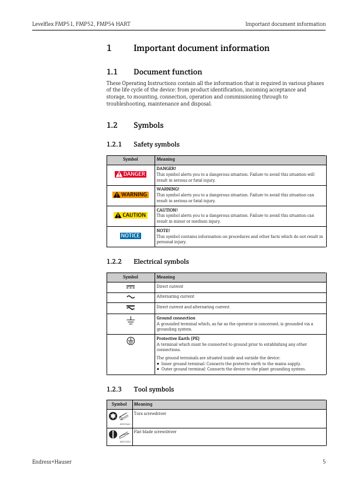

Endress+Hauser Levelflex FMP51 – Page preview (a2e8b83ea135_S1-166 S. 5)
Page preview · a2e8b83ea135_S1-166 · S. 5
Source: Endress+Hauser Levelflex FMP51 datasheet, p. 83
