Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Levelflex FMP55
Endress+Hauser

Levelflex FMP55

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified

Levelflex FMP55 guided radar with SensorFusion offers the worldwide first combination of the capacitance and guided radar measuring principle in one device. The instrument guarantees safe measured value acquisition even in emulsion layers and issues level and interface layer signals simultaneously. This makes the FMP55 Multiparameter the new standard in interface measurement especially in the oil & gas, chemical and petrochemical industry.

Specifications

Technical data.reference — unverified

Maximum load R, depending on the supply voltage U0 at the supply unit500
Device basic current15 mA
Ui17.5 V
Ii550 mA
Pi5.5 W
Li10 μH
Probe length< 10 m (33 ft)
Sampling rate3.6 measurements per second
Response time< 0.8 s
Pipe diameter> 40 mm (1.6 in) (for rod probes)
Minimum distance between probe end and lower edge of bypass10 mm (0.4 in)
Storage temperature-40 to +80 °C
Minimaler Biegeradius100 mm
B37 mm (1,46 in)
Für Sonde8 mm (0,3 in)
Für Sonden12 mm (0,47 in) und 16 mm (0,63 in)
RohreDN40 bis DN50
Temperatur-50 a +200 °C
Características/ventajasAplicaciones hasta +200 °C (+392 °F)
Temperatura-50 ... +200 °C (-58 ... +392 °F)
Pressionefino a +40 bar (fino a +580 psi)
Part numberFMP55
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A radar level measurement system for accurate liquid and interface level detection.

Applications

  • process vessels

Features

  • downward-looking design
  • capacitance combined with TDR method
  • reference point at process connection

Options

  • Bluetooth modem
Source: Endress+Hauser Levelflex FMP55 datasheet, p. 31

Standards

  • HistoROM (EEPROM)
Source: Endress+Hauser Levelflex FMP55 datasheet, p. 33

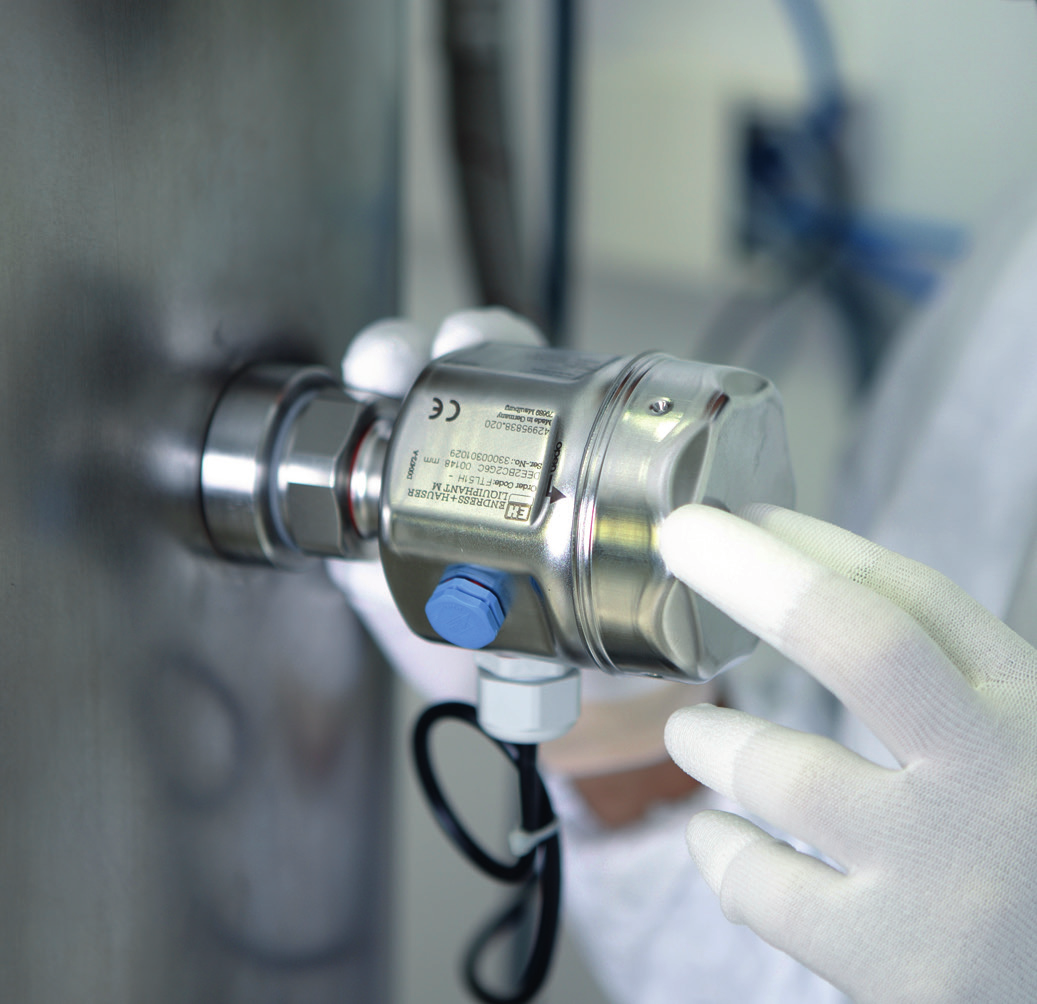

Endress+Hauser Levelflex FMP55 – Photo (ebcbb04aa144_S23-58 S. 32)
Photo · ebcbb04aa144_S23-58 · S. 32

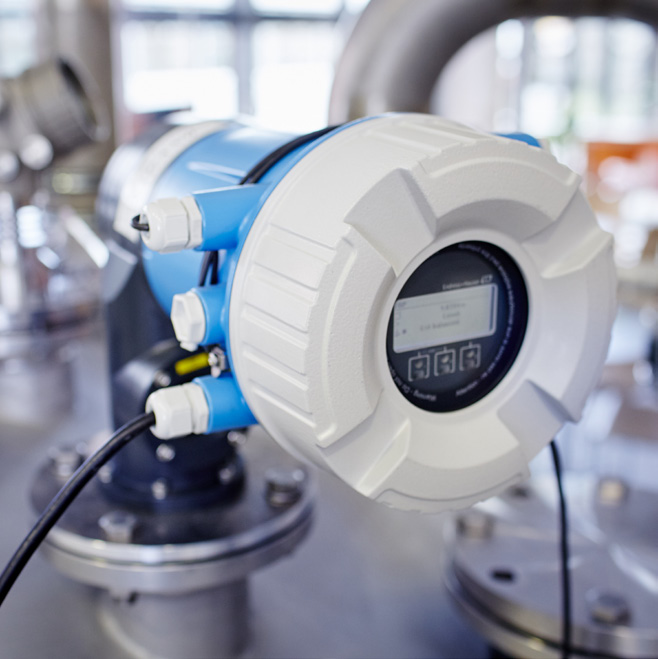

Endress+Hauser Levelflex FMP55 – Photo (ebcbb04aa144_S23-58 S. 34)
Photo · ebcbb04aa144_S23-58 · S. 34
Endress+Hauser Levelflex FMP55 – Drawing (1d0e60725889_S5-79 S. 7)
Drawing · 1d0e60725889_S5-79 · S. 7
Endress+Hauser Levelflex FMP55 – Drawing (1d0e60725889_S5-79 S. 8)
Drawing · 1d0e60725889_S5-79 · S. 8

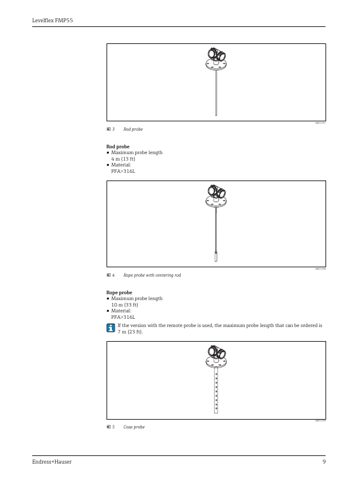

Endress+Hauser Levelflex FMP55 – Page preview (1d0e60725889_S5-79 S. 5)
Page preview · 1d0e60725889_S5-79 · S. 5

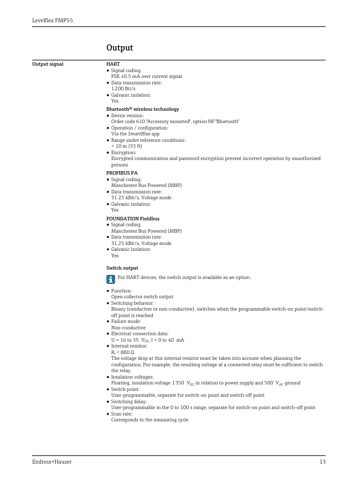

Endress+Hauser Levelflex FMP55 – Page preview (1d0e60725889_S5-79 S. 9)
Page preview · 1d0e60725889_S5-79 · S. 9

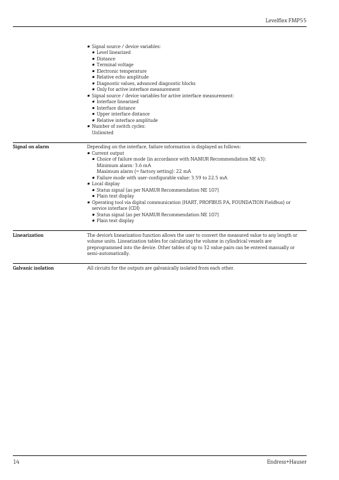

Endress+Hauser Levelflex FMP55 – Page preview (1d0e60725889_S5-79 S. 10)
Page preview · 1d0e60725889_S5-79 · S. 10

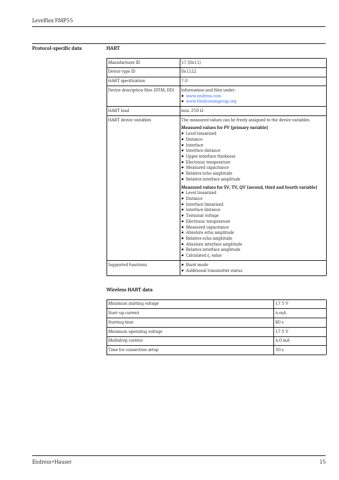

Endress+Hauser Levelflex FMP55 – Page preview (1d0e60725889_S5-79 S. 11)
Page preview · 1d0e60725889_S5-79 · S. 11
Source: Endress+Hauser Levelflex FMP55 datasheet, p. 5
