Endress+Hauser

Cerabar S PMC71

Pressure Transmitter / Transducer · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

MaterialAISI 316L (1.4435)
Weight0,8 (1.76) [kg (lb)]
Messbereich Nenndruck≤ 40 (580) bar (psi)
Part numberPMC71
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Housing Supply voltage Devices with integrated overvoltage protection are labeled "OVP" (overvoltage protection) here. External ground terminal Internal ground terminal”

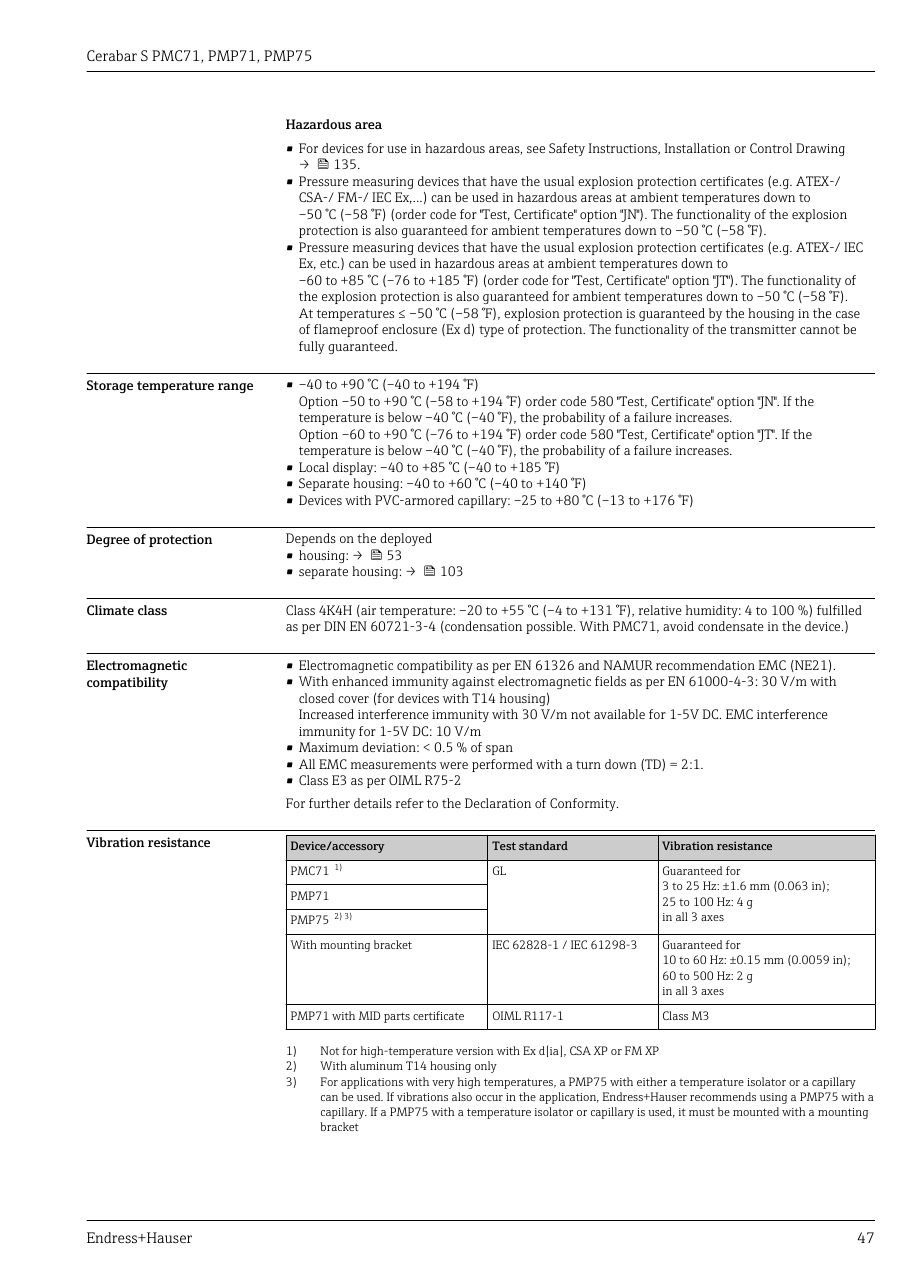

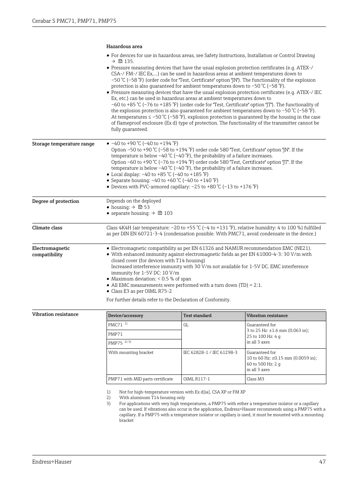

Endress+Hauser Cerabar S PMC71 – Drawing (83d011930699_S24-99 S. 24)
Drawing · 83d011930699_S24-99 · S. 24

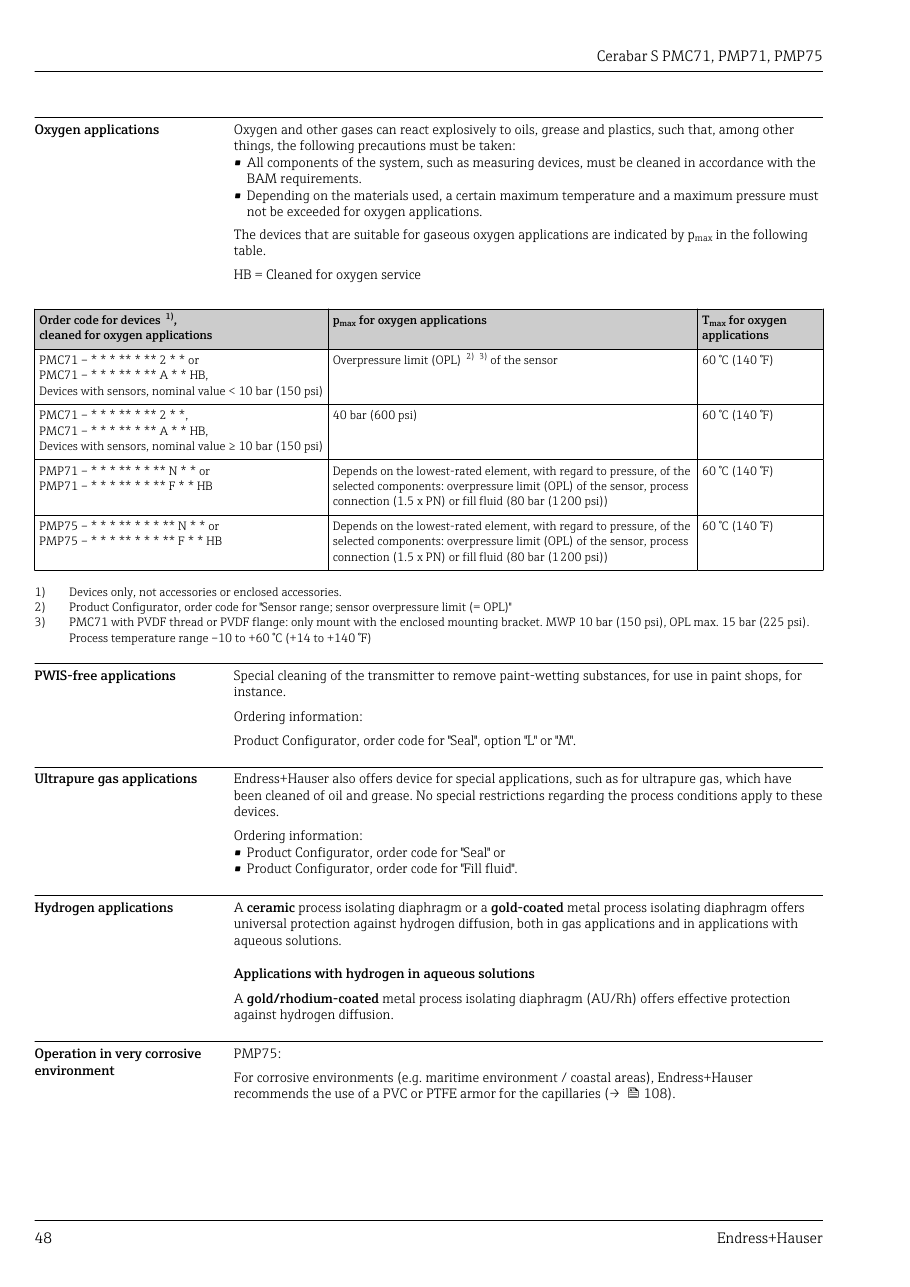

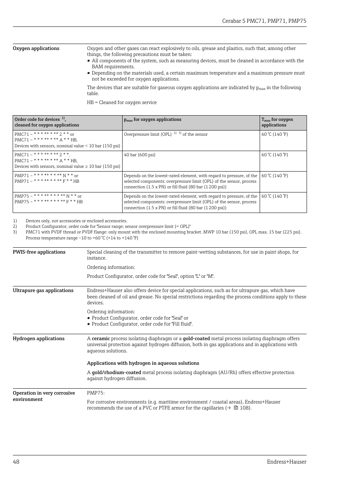

Endress+Hauser Cerabar S PMC71 – Drawing (83d011930699_S24-99 S. 25)
Drawing · 83d011930699_S24-99 · S. 25

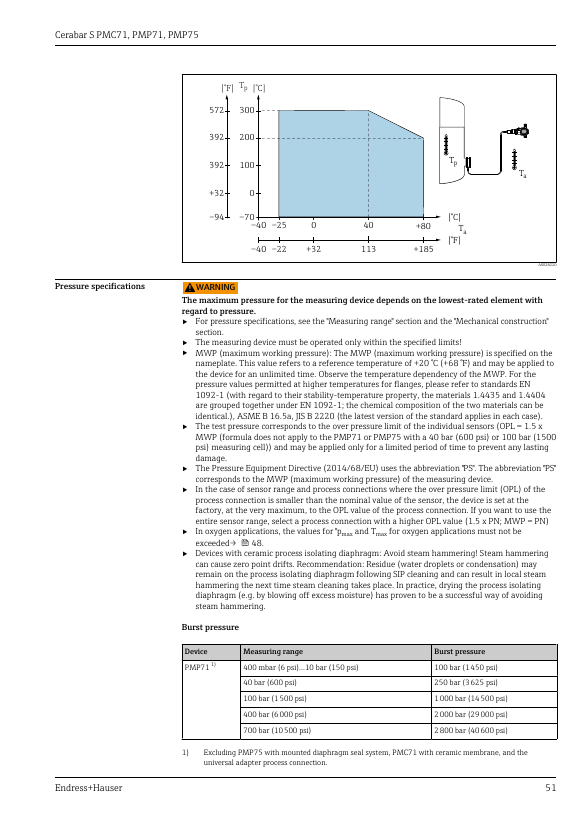

Endress+Hauser Cerabar S PMC71 – Drawing (83d011930699_S24-99 S. 27)
Drawing · 83d011930699_S24-99 · S. 27

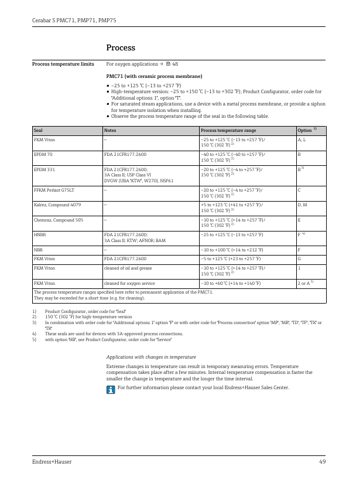

Endress+Hauser Cerabar S PMC71 – Page preview (83d011930699_S24-99 S. 26)
Page preview · 83d011930699_S24-99 · S. 26

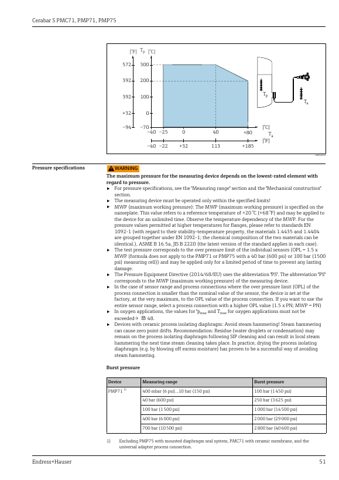

Endress+Hauser Cerabar S PMC71 – Page preview (83d011930699_S24-99 S. 28)
Page preview · 83d011930699_S24-99 · S. 28

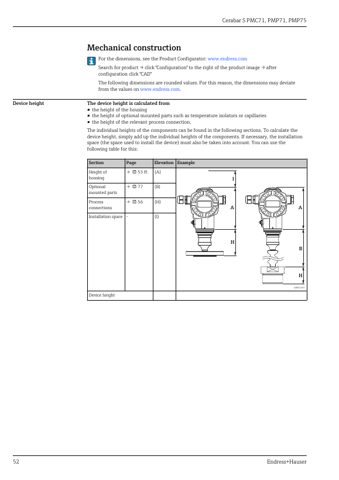

Endress+Hauser Cerabar S PMC71 – Page preview (83d011930699_S24-99 S. 29)
Page preview · 83d011930699_S24-99 · S. 29

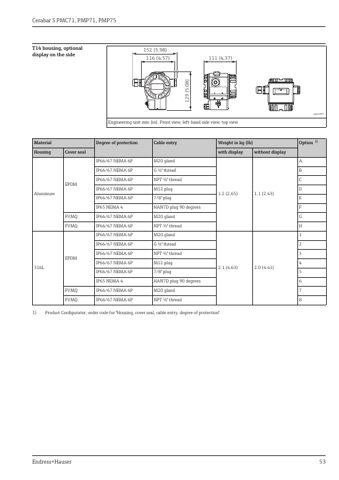

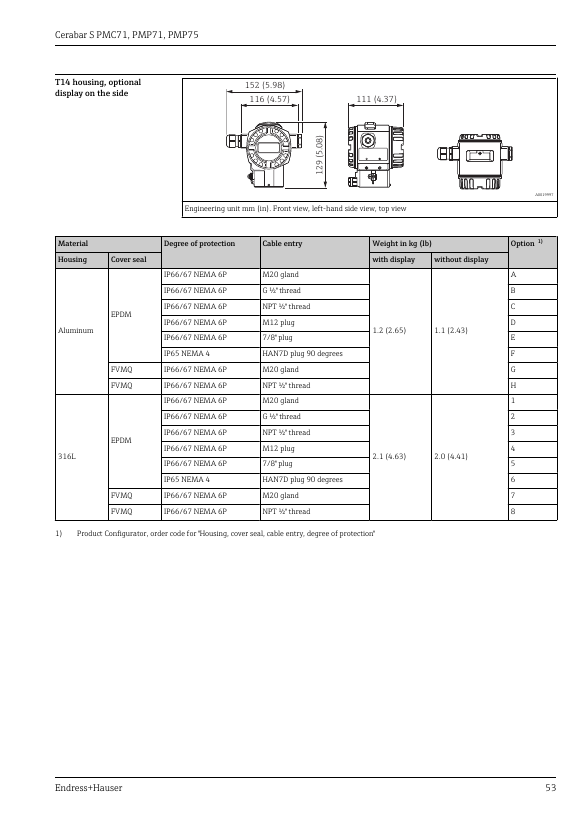

Endress+Hauser Cerabar S PMC71 – Page preview (83d011930699_S24-99 S. 30)
Page preview · 83d011930699_S24-99 · S. 30
Source: Endress+Hauser Cerabar S PMC71 datasheet, p. 1
