Deltapilot S FMB70

Pressure Transmitter / Transducer · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

The Deltapilot FMB70 with the condensate resistant Contite measuring cell and two-chamber housing is typically used in the process and hygienic applications. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. The integrated HistoROM/M-DAT data module makes management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety systems.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Supply voltage4 to 20 mA HART
Ambient temperature range–40 to +85 °C (–40 to +185 °F)
Local display–20 to +70 °C (–4 to +158 °F)
Separate housing–20 to +60 °C (-4 to +140 °F)
Storage temperature range–40 to +90 °C
DescriptionDIN 11851 DN 40
Nominal pressurePN 25
MaterialAISI 316L
Weight0.7 (1.54) kg (lb)
CertificationsCRN 00
untere (LRL)-0,1 (-1,5) [bar (psi)]
obere (URL)+0,1 (+1,5) [bar (psi)]
kalibrierbare Messspanne0,025 (0,375) [bar (psi)]
Mwp2,7 (40,5) [bar (psi)]
Opl4 (60) [bar (psi)]
Maximale Bürde - 4...20 mA4...20 mA
Ø44 (1.73)
Einfluss der Einbaulage±2,3 mbar (0,0345 psi). Bei Geräten mit inertem Öl verdoppelt sich der Wert.
Referenz-genauigkeitDie Referenzgenauigkeit enthält die Nicht-Linearität [DIN EN 61298-2 3.11] inklu
NenndruckPN 40
MaterialAISI 316L
Weight1 (2.21) kg (lb)
Mounting bracket dimensionsø42...60 (1.65...2.36)
Capillary tube bending radius≥ 100 mm (3.94 in)
Tightening torque5 Nm (3.69 lbs ft)
Onsite display storage temperature range–40 to +85°C
Separate housing storage temperature range–40 to +60°C
Current consumption15.5 mA ±1 mA
Terminals for wire cross-sections0.5 to 2.5 mm2 (20 to 14 AWG)
Outer cable diameter5 to 9 mm (0.2 to 0.35 in)
Referenztemperatur20 °C (68 °F)
PrüfdruckMWP x 1,5 PS
Nennansprechgleichspannung600 V
Nennableitstoßstrom10 kA
Stoßstromprüfung20 kA
Ableiterwechselstromprüfung10 A
Xd error17
Versorgungsspannung11,5...45 V DC
Part numberFMB70
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A device for measuring 4 to 20 mA signals, suitable for non-hazardous areas and intrinsically safe environments.

Applications

  • measurement

Features

  • non-hazardous area
  • intrinsically safe

Options

  • PROFIBUS PA communication protocol
  • supports FISCO model
Source: Endress+Hauser Deltapilot S FMB70 datasheet, p. 11

Standards

  • EN 61326
  • NAMUR recommendation EMC (NE21)
Source: Endress+Hauser Deltapilot S FMB70 datasheet, p. 30

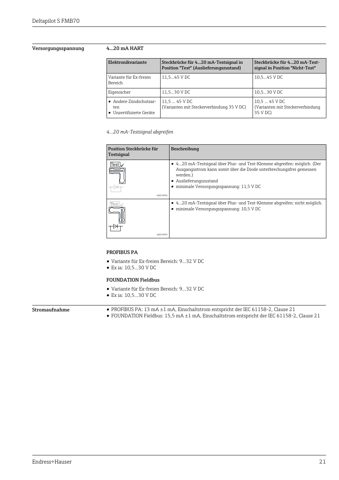

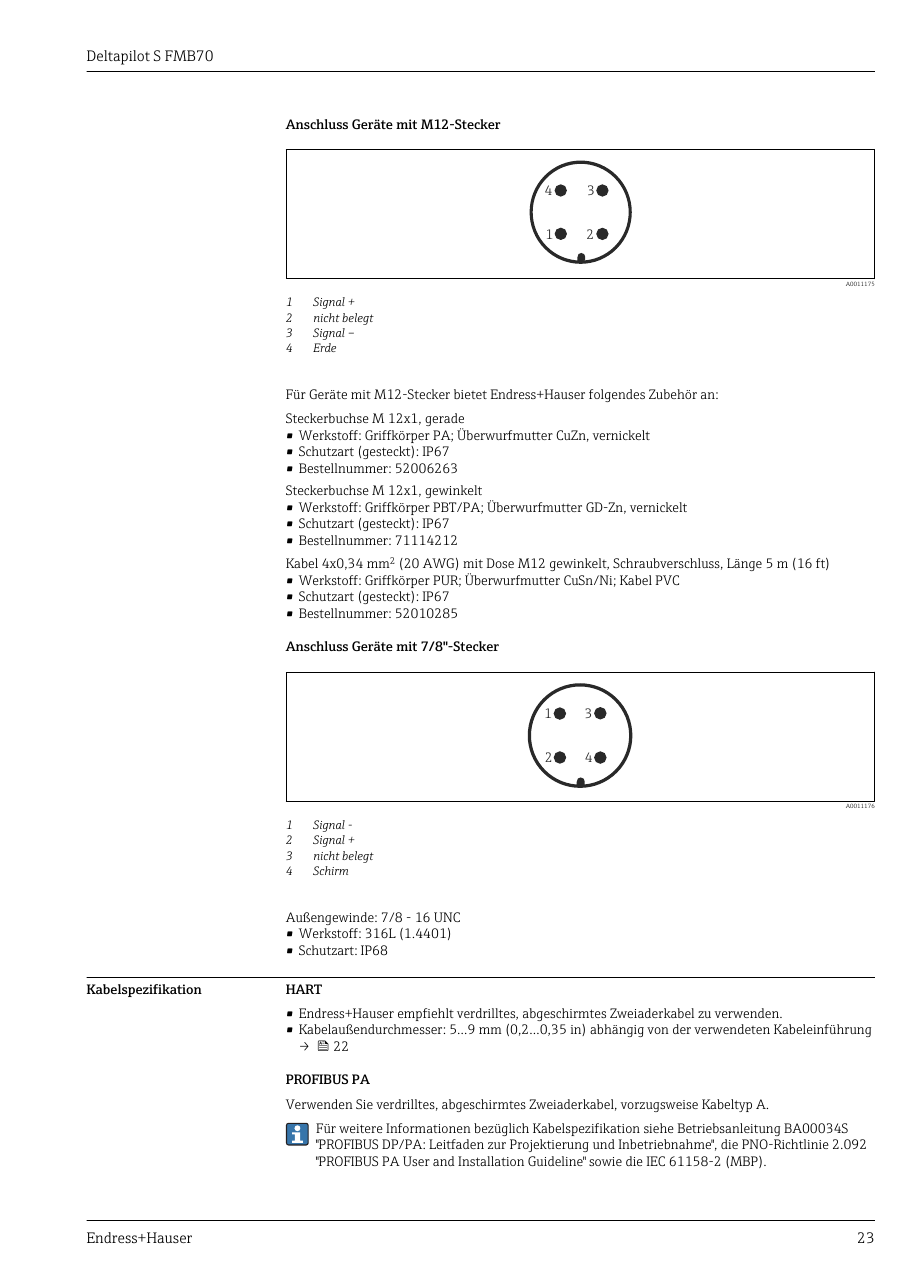

Endress+Hauser Deltapilot S FMB70 – Drawing (ca4b58003081_S11-61 S. 11)
Drawing · ca4b58003081_S11-61 · S. 11

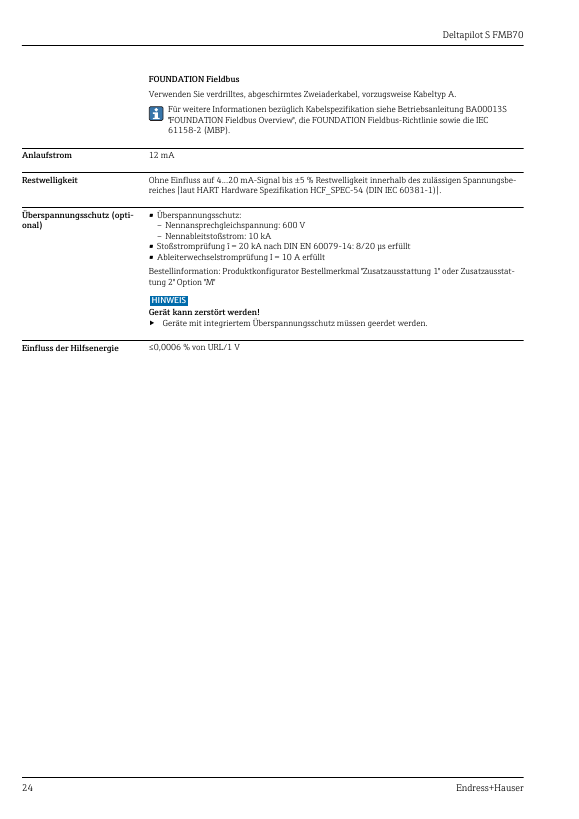

Endress+Hauser Deltapilot S FMB70 – Drawing (ca4b58003081_S11-61 S. 12)
Drawing · ca4b58003081_S11-61 · S. 12

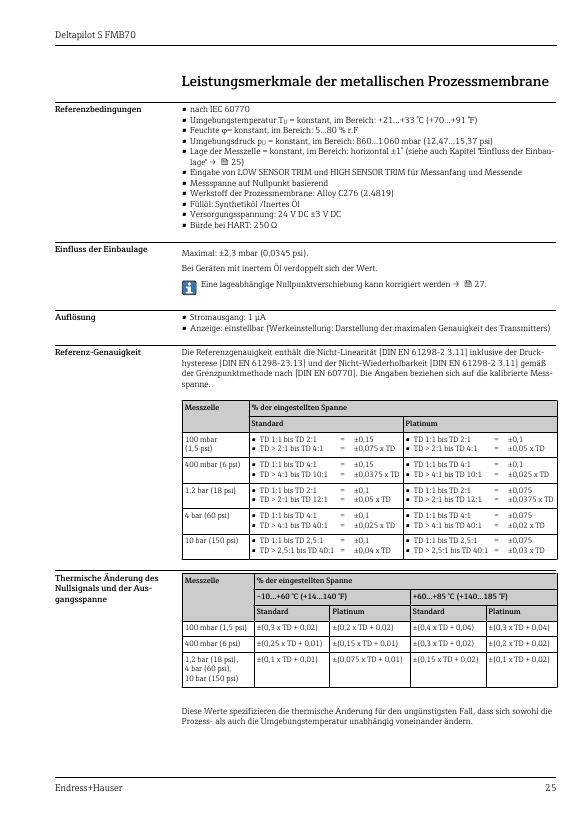

Endress+Hauser Deltapilot S FMB70 – Drawing (ca4b58003081_S11-61 S. 13)
Drawing · ca4b58003081_S11-61 · S. 13

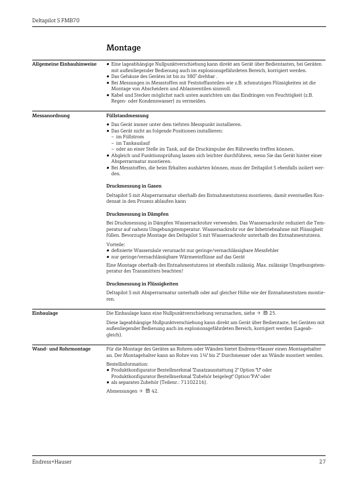

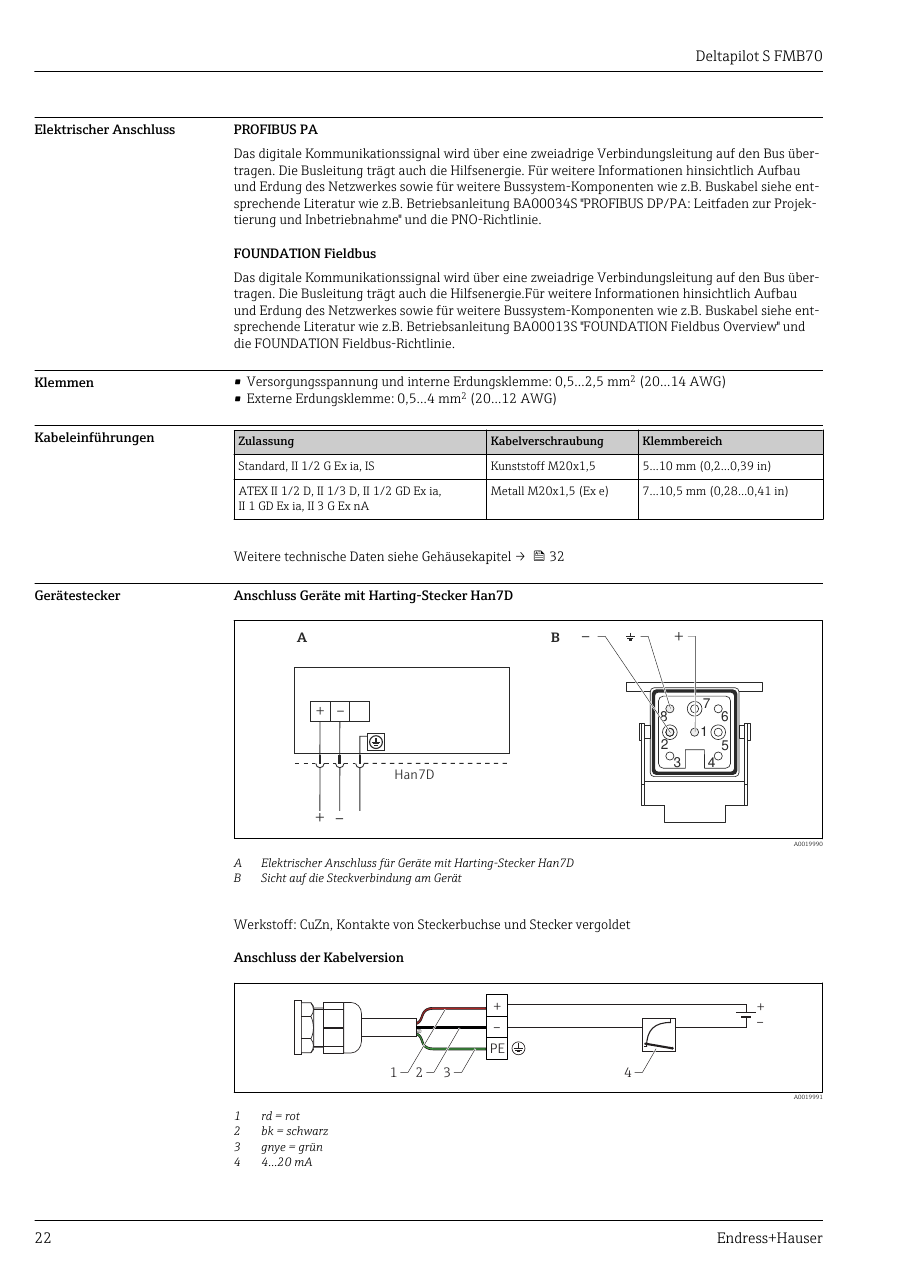

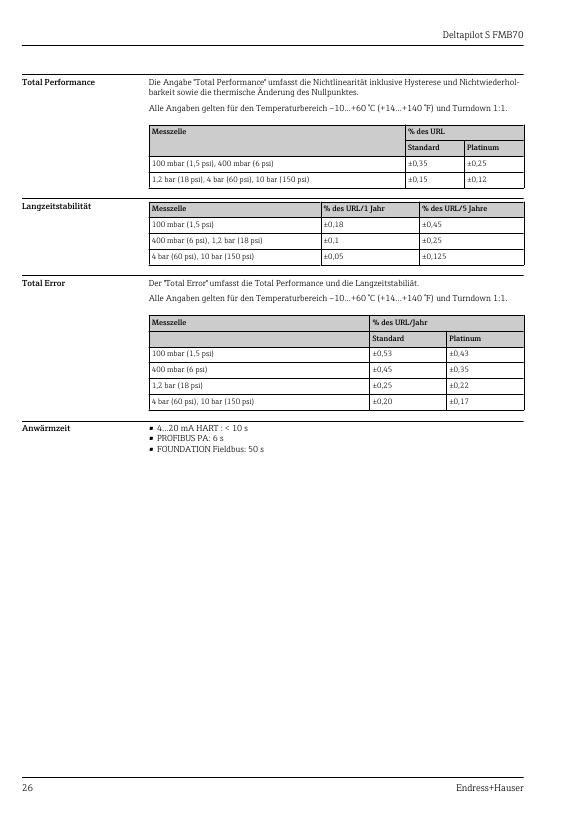

Endress+Hauser Deltapilot S FMB70 – Page preview (ca4b58003081_S11-61 S. 14)
Page preview · ca4b58003081_S11-61 · S. 14

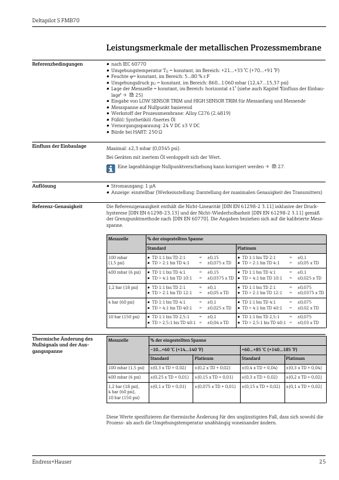

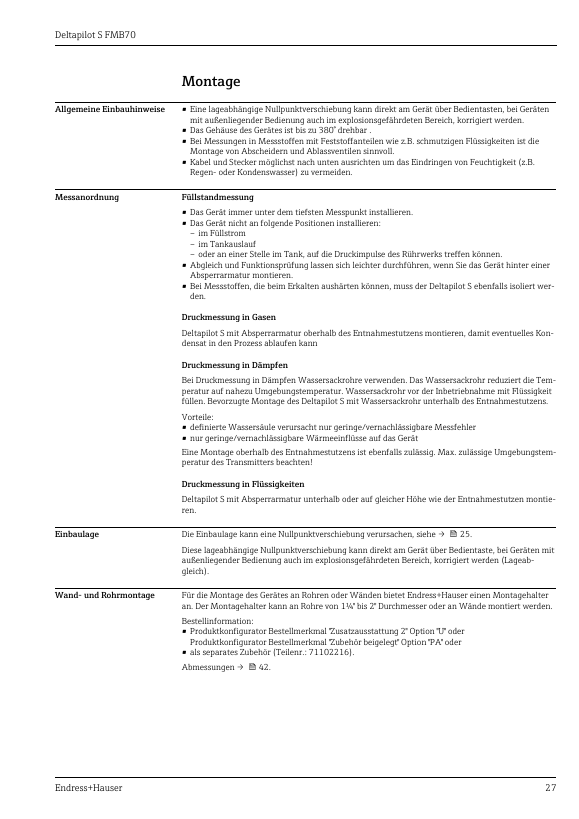

Endress+Hauser Deltapilot S FMB70 – Page preview (ca4b58003081_S11-61 S. 15)
