Endress+Hauser

Deltapilot M FMB50

Pressure Transmitter / Transducer · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

The compact Deltapilot FMB50 transmitter with the condensate resistant Contite measuring cell is typically used in the process and hygienic applications. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. For use in SIL2 safety systems.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nominal pressurePN 25
MaterialAISI 316L
Weight0.7 (1.54) kg (lb)
Part numberFMB50
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“OPL: The OPL (over pressure limit = measuring cell overpressure limit) for the device depends on the lowestrated element, with regard to pressure, of the selected components, i.e. the process…”

Endress+Hauser Deltapilot M FMB50 – Drawing (f0e62cea2a94_S5-39 S. 5)
Drawing · f0e62cea2a94_S5-39 · S. 5

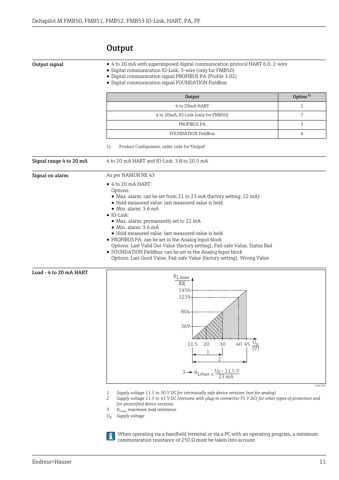

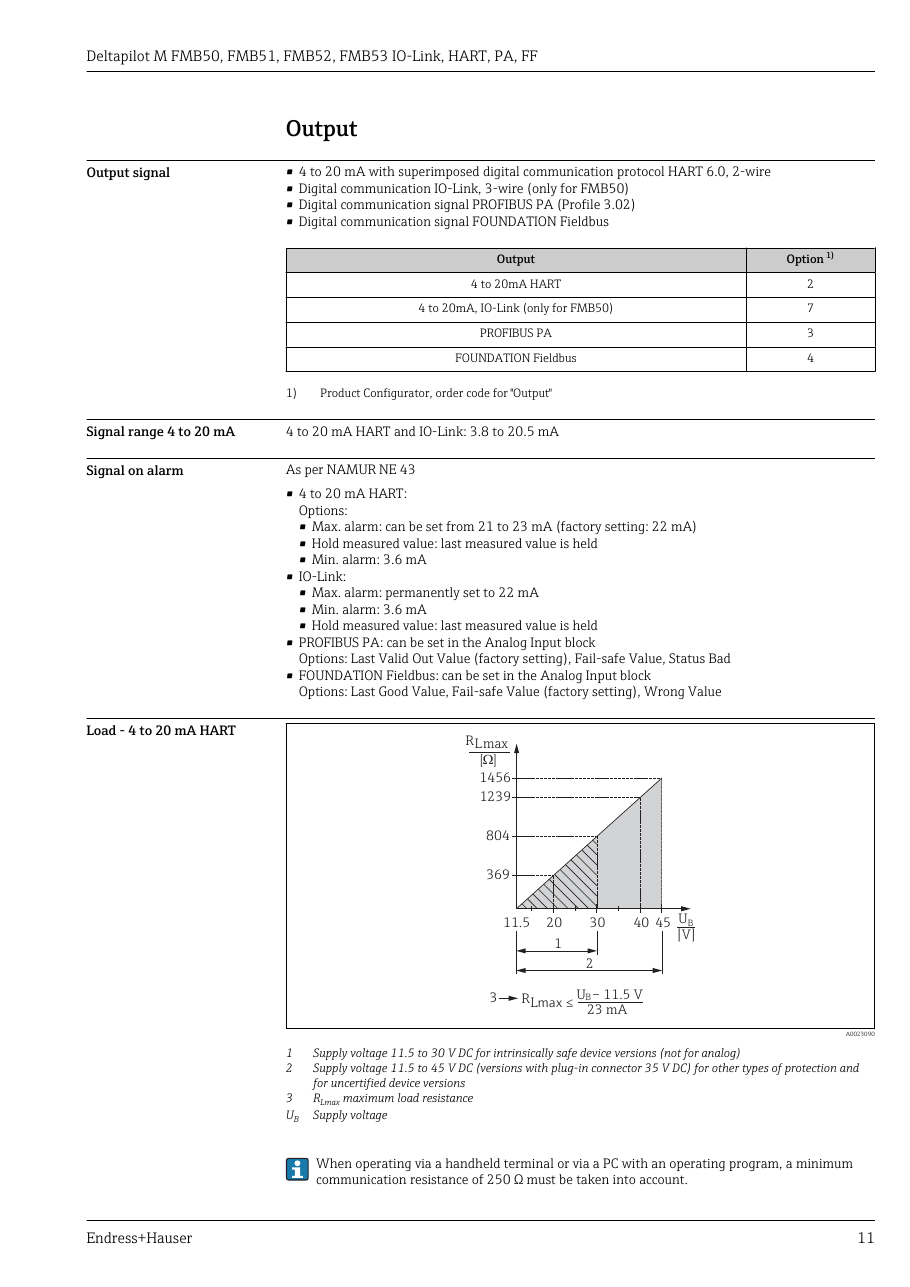

Endress+Hauser Deltapilot M FMB50 – Drawing (f0e62cea2a94_S5-39 S. 7)
Drawing · f0e62cea2a94_S5-39 · S. 7

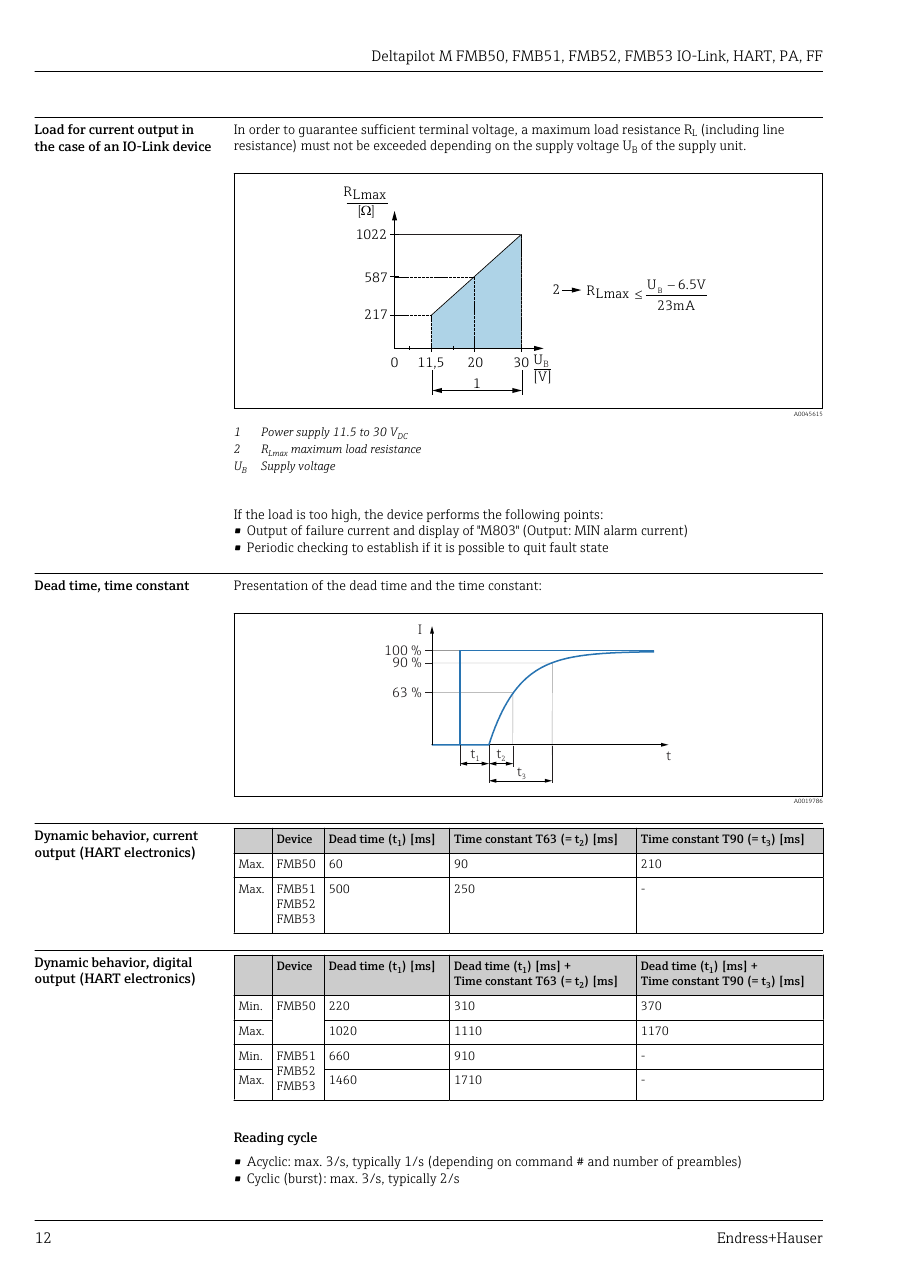

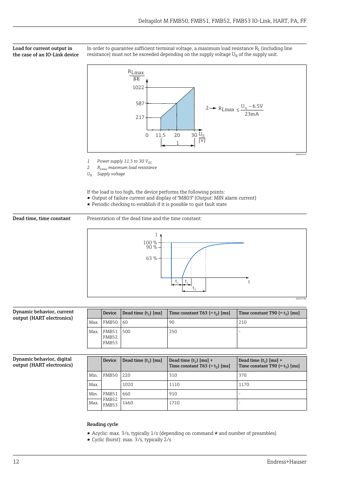

Endress+Hauser Deltapilot M FMB50 – Drawing (f0e62cea2a94_S5-39 S. 8)
Drawing · f0e62cea2a94_S5-39 · S. 8
Endress+Hauser Deltapilot M FMB50 – Page preview (f0e62cea2a94_S5-39 S. 6)
Page preview · f0e62cea2a94_S5-39 · S. 6
Endress+Hauser Deltapilot M FMB50 – Page preview (f0e62cea2a94_S5-39 S. 9)
Page preview · f0e62cea2a94_S5-39 · S. 9

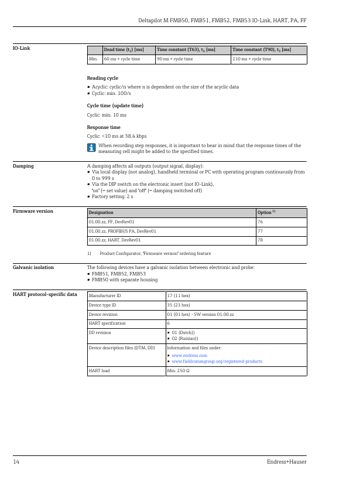

Endress+Hauser Deltapilot M FMB50 – Page preview (f0e62cea2a94_S5-39 S. 10)
Page preview · f0e62cea2a94_S5-39 · S. 10
Endress+Hauser Deltapilot M FMB50 – Page preview (f0e62cea2a94_S5-39 S. 11)
Page preview · f0e62cea2a94_S5-39 · S. 11
Source: Endress+Hauser Deltapilot M FMB50 datasheet, p. 1
