Goetze KG Armaturen

Series 9160

Safety / Relief Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified

The Series 9160 is the smallest water pressure reducing valves in the Goetze portfolio. These mini pressure reducing valves in nominal width DN08 are used especially in applications such as coffee machines, water dispensers or soft drink dispensers with fixed water connections.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Inlet pressureup to 16 bar
Outlet pressure1 - 6 bar
pdf_C03 Material test certificate accDIN EN 10204 3.1 (MPZ 3.1) (pressure retaining part)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A pressure reducing valve with threaded connection designed for potable water systems, suitable for protecting water-bearing devices and systems against excessive supply pressure.

Applications

  • Protection of water-bearing devices and systems
  • Water supply systems in single-family and multi-family homes
  • Coffee machines
  • Water dispensers
  • Drinking water supply systems

Features

  • Compact design
  • Adjustment scale for setting without pressure gauge
  • Internal and external thread connection
  • Filter screen with mesh size 350µm

Options

  • Supplied with manometers
  • Supplied with John Guest connectors
  • Supplied with backflow preventer
Source: Goetze KG Armaturen Series 9160 datasheet, p. 3

Standards

  • DIN EN 1567
  • DIN 4109
  • UBA BWGL for metallic materials
  • KTW guideline

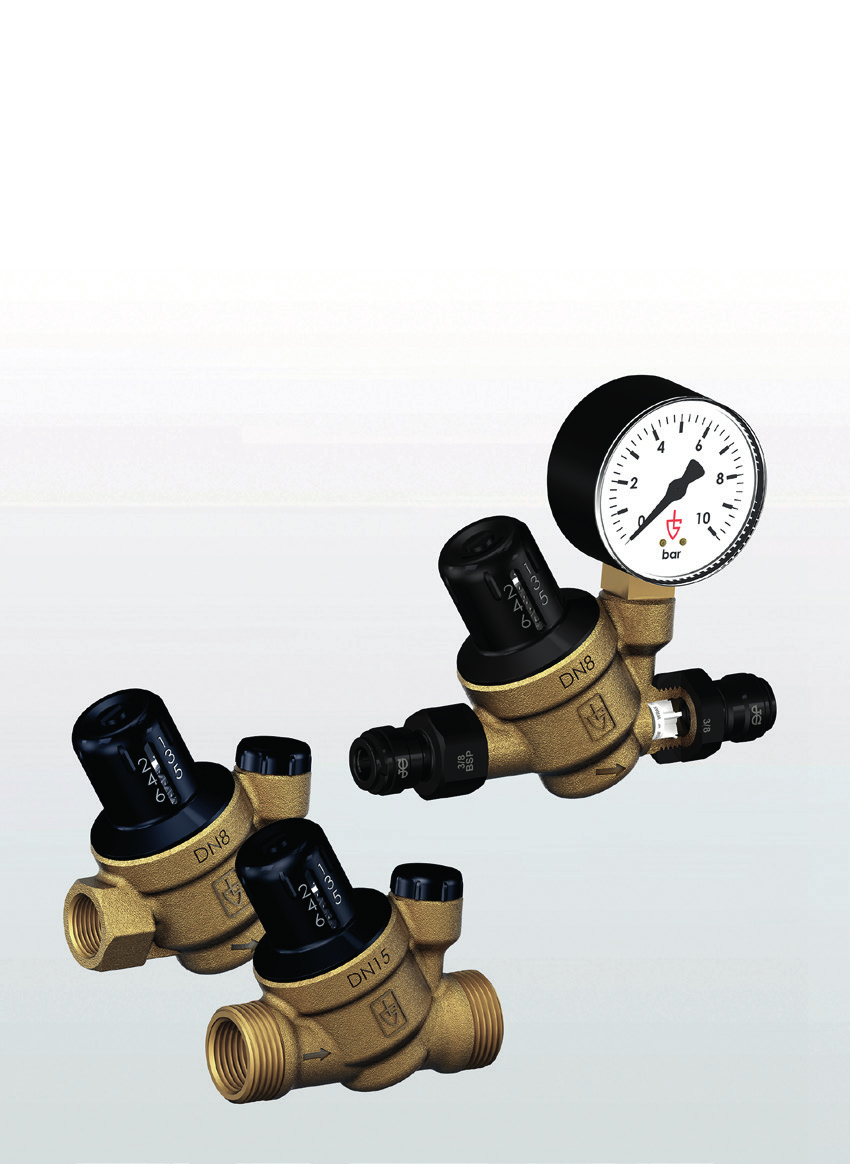

Goetze KG Armaturen Series 9160 – Photo (18e2624aaaaa_S1-3 S. 1)
Photo · 18e2624aaaaa_S1-3 · S. 1

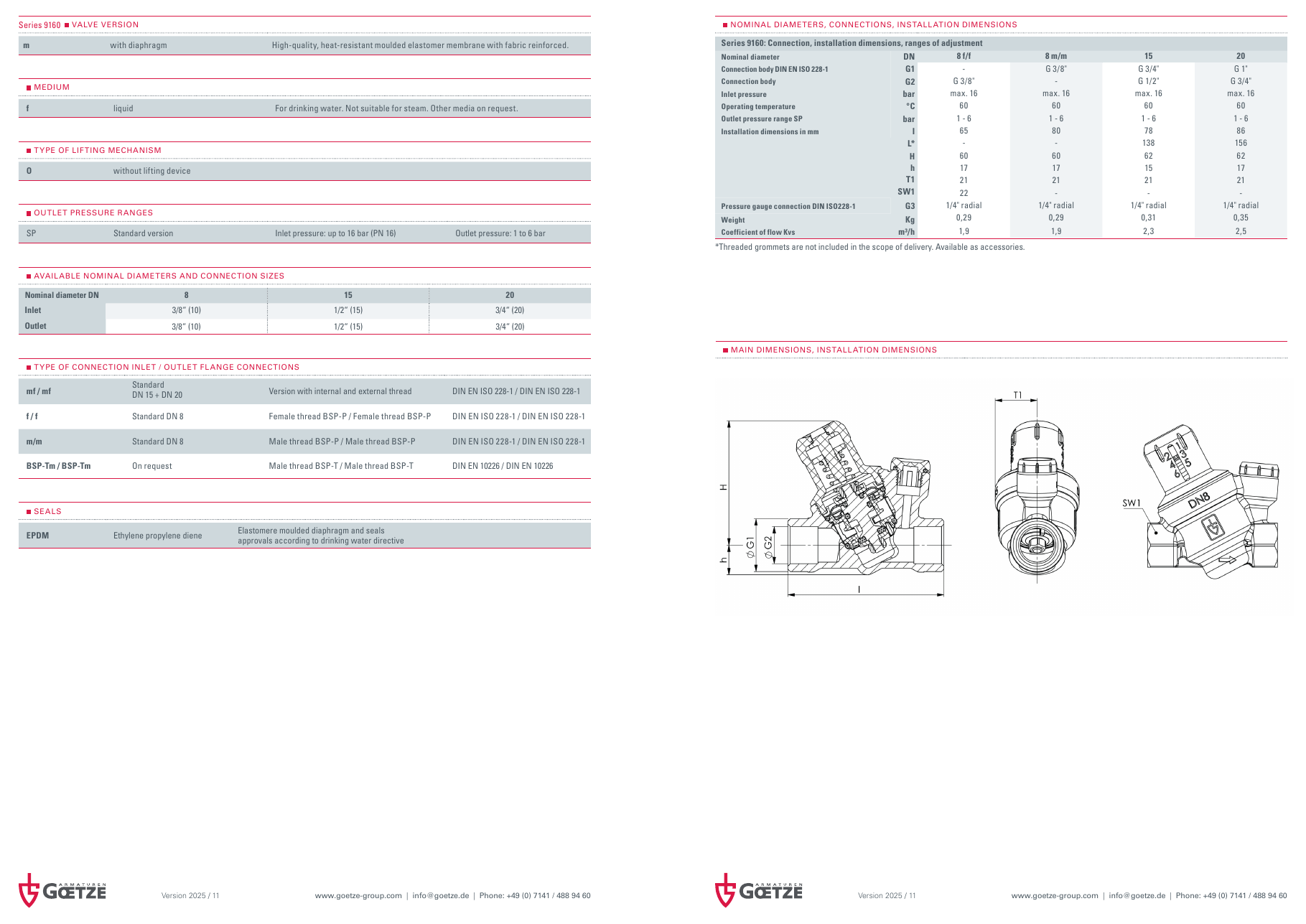

Goetze KG Armaturen Series 9160 – Photo (18e2624aaaaa_S1-3 S. 2)
Photo · 18e2624aaaaa_S1-3 · S. 2

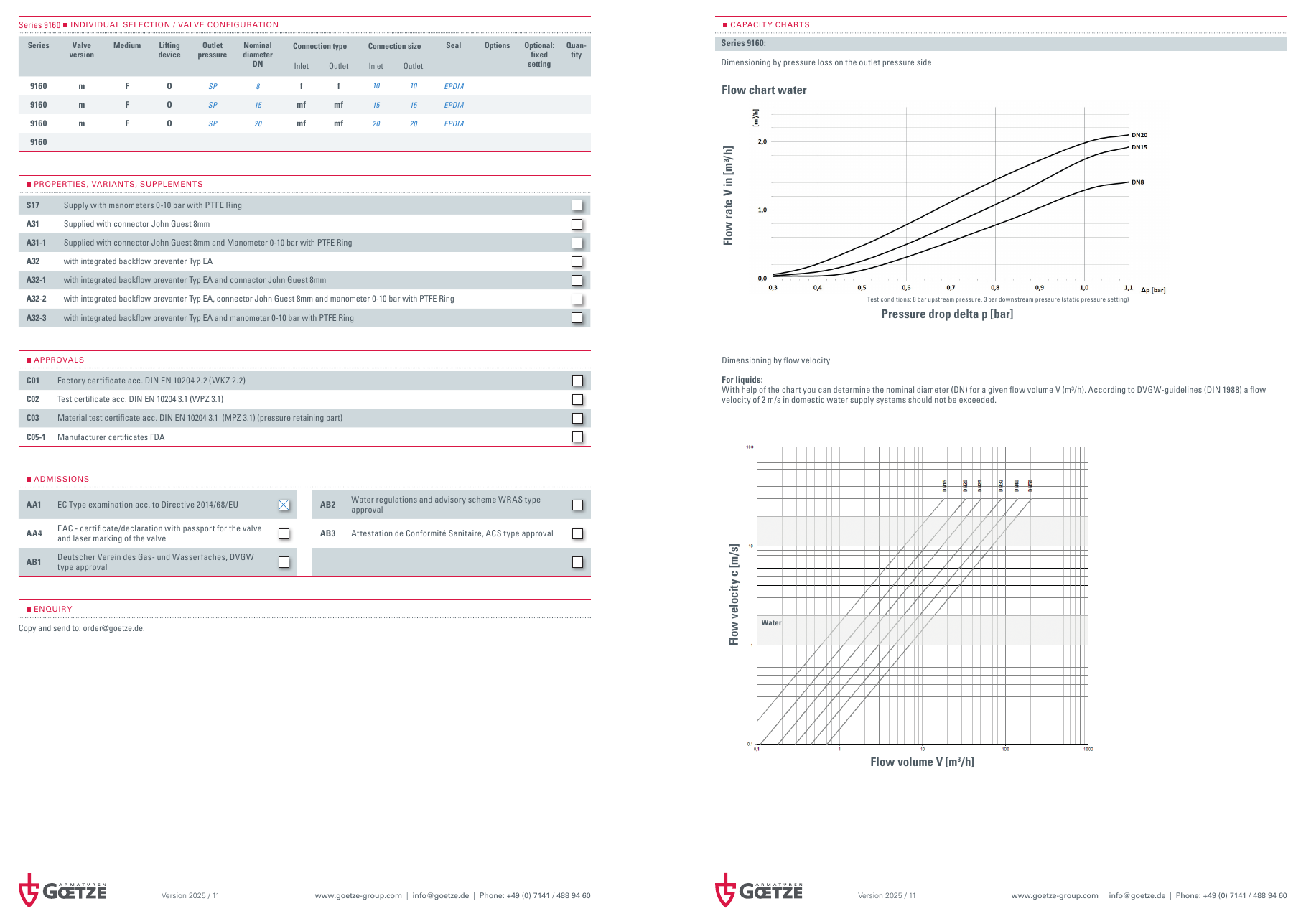

Goetze KG Armaturen Series 9160 – Photo (18e2624aaaaa_S1-3 S. 3)
Photo · 18e2624aaaaa_S1-3 · S. 3

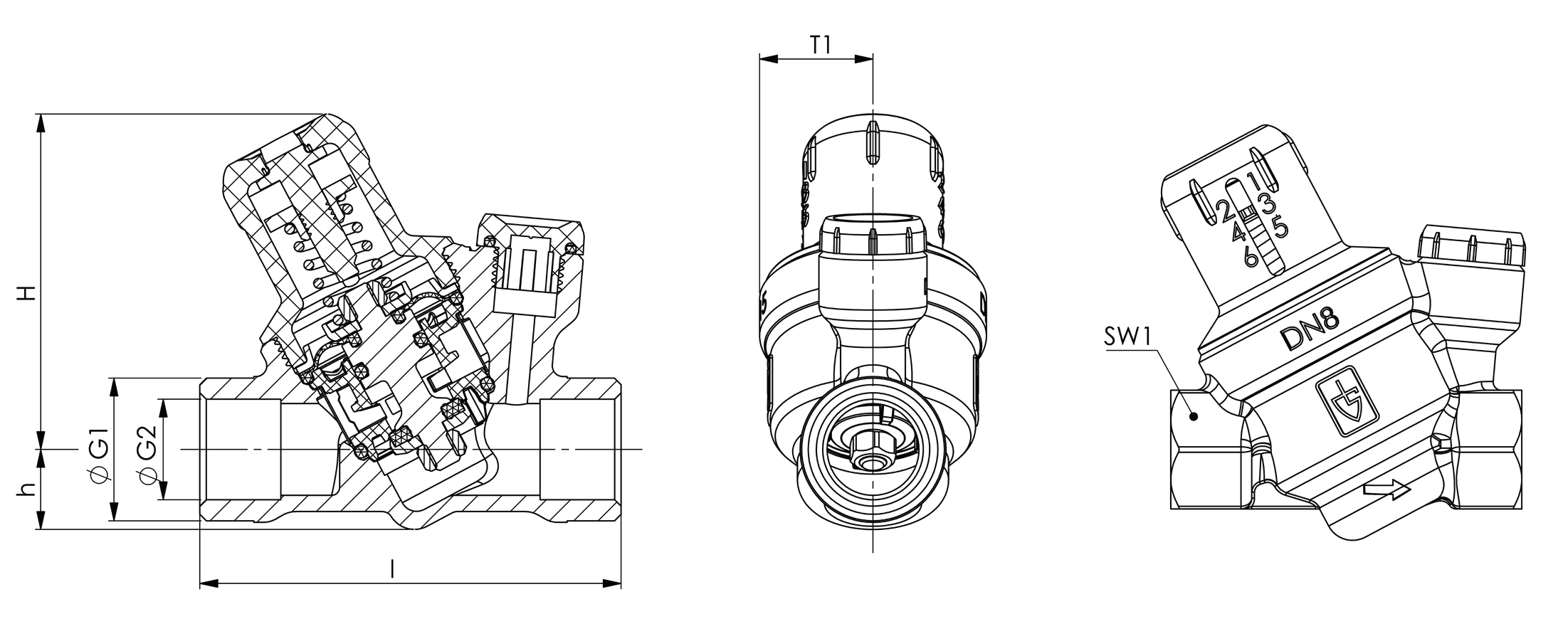

Goetze KG Armaturen Series 9160 – Drawing (18e2624aaaaa_S1-3 S. 2)
Drawing · 18e2624aaaaa_S1-3 · S. 2
Goetze KG Armaturen Series 9160 – Drawing (18e2624aaaaa_S1-3 S. 3)
Drawing · 18e2624aaaaa_S1-3 · S. 3

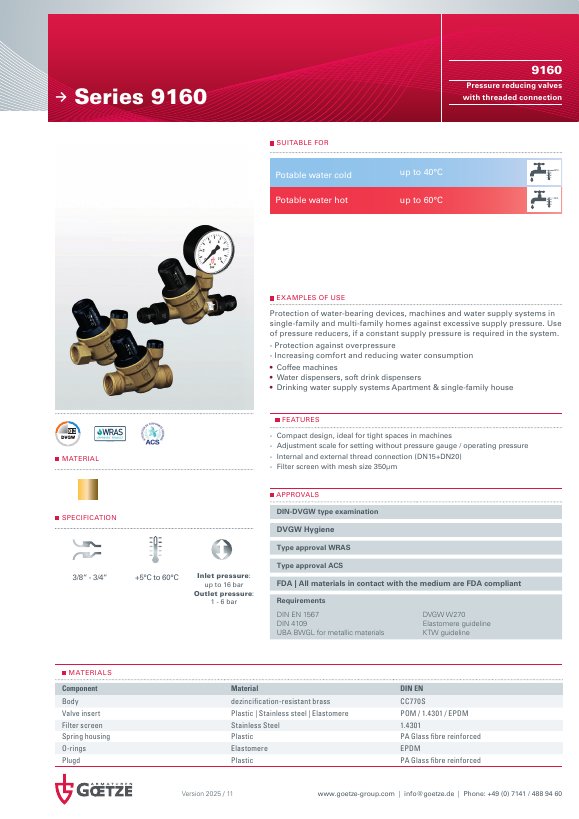

Goetze KG Armaturen Series 9160 – Page preview (18e2624aaaaa_S1-3 S. 1)
Page preview · 18e2624aaaaa_S1-3 · S. 1
Source: Goetze KG Armaturen Series 9160 datasheet, p. 1
