Library› Electrical› Instrumentation & Gauges› Pressure Gauge› Nuova Fima MD15
Nuova Fima

MD15

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

MD15 @it Manometri differenziali PN 200 a doppia membrana DN 100-150

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Диапазоны:от 0...0,1 бар до 0...25 бар или в других
Класс точности:1,6 согласно EN 837.
Амплитуда шкалы:180°...270°C, зависит от диапазона шкалы.
Статическое давление:25...200 бар, зависит от диапазона шкалы.
Температура окружающей среды:0...+65 °C.
Температура измеряемой среды:до +150 °C.
Температурный дрейф:±0,8% каждые ±10 °C температуры окружающей среды.
Степень защиты:IP 55 согласно EN 60529/IEC 529.
CertificationsPED 2014/68/UE
Ø 5.201.91
Ø 4.720.59
Ø 4.353.54
Ø 3.981.97
MaterialiTutto inox
Materiale attacco al processoAISI 316 L, Monel 400, Hastelloy C 276
Materiale elemento sensibileAISI 316 L, DURATHERM, Monel 400, Hastelloy C 276
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Эти приборы используются для контроля разности давлений газов и жидкостей, которые не имеют высокой вязкости и не кристаллизуются. При высокой температуре, высокой вязкости и для коррозионноактивной…”

Standards

  • EN 837
Source: Nuova Fima MD15 datasheet, p. 2
Nuova Fima MD15 – Photo (6e6c220086d8_S2-3 S. 2)
Photo · 6e6c220086d8_S2-3 · S. 2

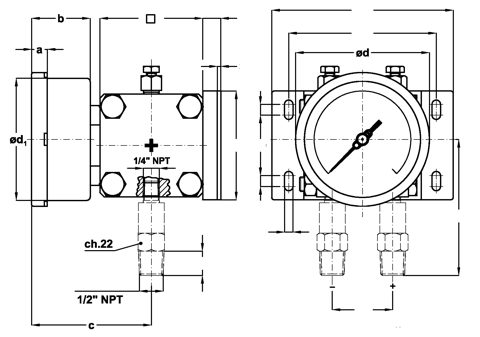

Nuova Fima MD15 – Drawing (6e6c220086d8_S2-3 S. 2)
Drawing · 6e6c220086d8_S2-3 · S. 2
Nuova Fima MD15 – Drawing (6e6c220086d8_S2-3 S. 2)
Drawing · 6e6c220086d8_S2-3 · S. 2
Source: Nuova Fima MD15 datasheet, p. 1
