High Efficiency - Supplementary loading system

Safety / Relief Valve · Industrial Valves

​‍‌‍⁠‌⁠​​‍⁠‍‌‍‍​‍⁠⁠‍
1000 mm × 800 mm × 800 mmDimensions

On modern vessels, space optimization is crucial, especially in areas where multiple pieces of equipment need to coexist. The High Efficiency - Supplementary loading system, designed for such environments, offers a compact footprint that maximizes utility without compromising functionality. With dimensions measuring 1000 mm × 800 mm × 800 mm, this system is meticulously engineered to fit seamlessly into tight quarters aboard ships. Its design ensures it can be integrated easily alongside other critical systems, enhancing operational efficiency and minimizing the need for extensive modifications to existing layouts. The robust yet compact nature of this system makes it a reliable choice for supplementing loading operations in a variety of maritime settings, from cargo vessels to offshore platforms.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Dimensions1000 mm × 800 mm × 800 mm🔖
Set pressure0.1 - 250 barg | 1.5 - 3626 psig
Temperature-40 - 550 °C | -40 - 1,022 °F
Connections DIN EN 1092DN 25 to DN 400
Connections ASME B16.5NPS 3/4 to NPS 16
Body materialGray cast iron, nodular cast iron, carbon steel , high-temperature carbon steel , stainless cast steel
pdf_Overpressure Max3 % ASME I <1%
📄
Download datasheet (PDF) (1497 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

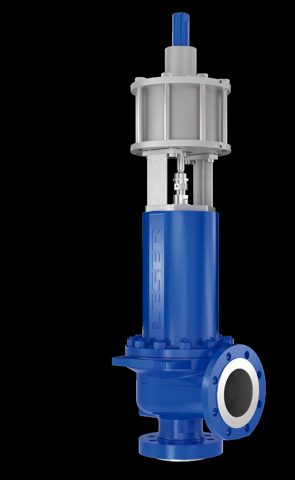

LESER High Efficiency - Supplementary loading system – Photo (LESER datasheet S. 1)
Photo · LESER datasheet · S. 1

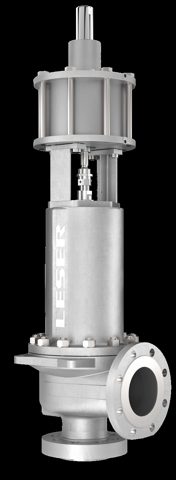

LESER High Efficiency - Supplementary loading system – Photo (LESER datasheet S. 2)
Photo · LESER datasheet · S. 2
LESER High Efficiency - Supplementary loading system – Photo (LESER datasheet S. 3)
Photo · LESER datasheet · S. 3

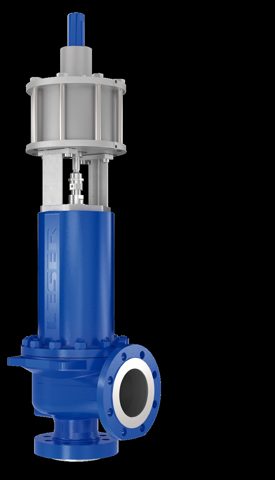

LESER High Efficiency - Supplementary loading system – Photo (LESER datasheet S. 4)
Photo · LESER datasheet · S. 4
LESER High Efficiency - Supplementary loading system – Photo (LESER datasheet S. 1)
Photo · LESER datasheet · S. 1
LESER High Efficiency - Supplementary loading system – Drawing (LESER datasheet S. 1)
Drawing · LESER datasheet · S. 1
LESER High Efficiency - Supplementary loading system – Drawing (LESER datasheet S. 2)
Drawing · LESER datasheet · S. 2

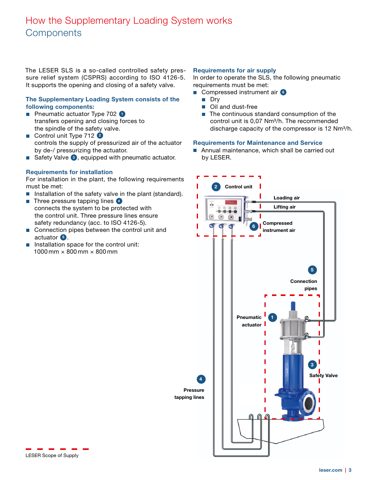

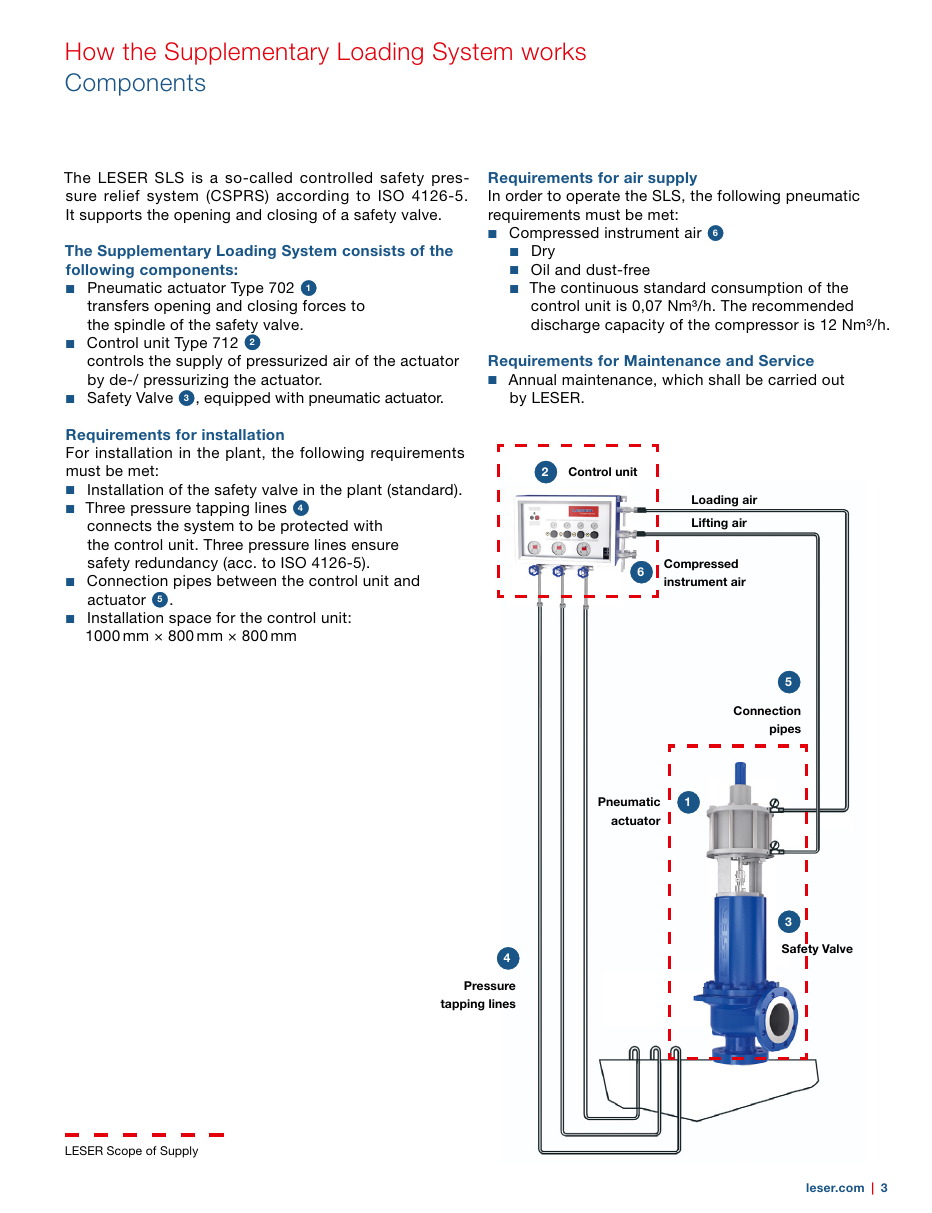

LESER High Efficiency - Supplementary loading system – Drawing (LESER datasheet S. 3)
Drawing · LESER datasheet · S. 3
