LESER GmbH

Type 330 Compact | LESER - The Safety Valve

Safety / Relief Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified

Gegossenes Wechselventil

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Weight H-Maß Standard (DN 25 to 100)73 78 79 117 125 185 kg🔖
KVS (DN 25 to 100)33 76 107 202 271 554 m³/h🔖
Flanschdruckstufe EintrittPN 10 - PN 40 | CL150 - CL300
Temperatur (nach DIN EN)-211 bis 400 °C | -348 bis 752 °F
Temperatur (nach ASME)-211 bis 400 °C | -348 bis 752 °F
Gehäusewerkstoffe1.0619, 1.4408 | WCB/WCC, LCB, CF8M
ZulassungenDGRL 2014/68/EU, TR-CU 010, TR-CU 032
pdf_Type 320 FlowPN 10 – PN 250 / CL150 – CL1500
pdf_auf den Ansprechdruck bezogenDas AD Regelwerk
pdf_PN 160/CL900PN 160/CL900:
pdf_PN 250/CL1500PN 250/CL1500: -196°C/-321°F 400°C/752°F
pdf_Type DN Art.-Nrstufe1) Breite
pdf_und Stopfbuchsdichtung (Pos204)
📄
Download datasheet (PDF) (3901 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

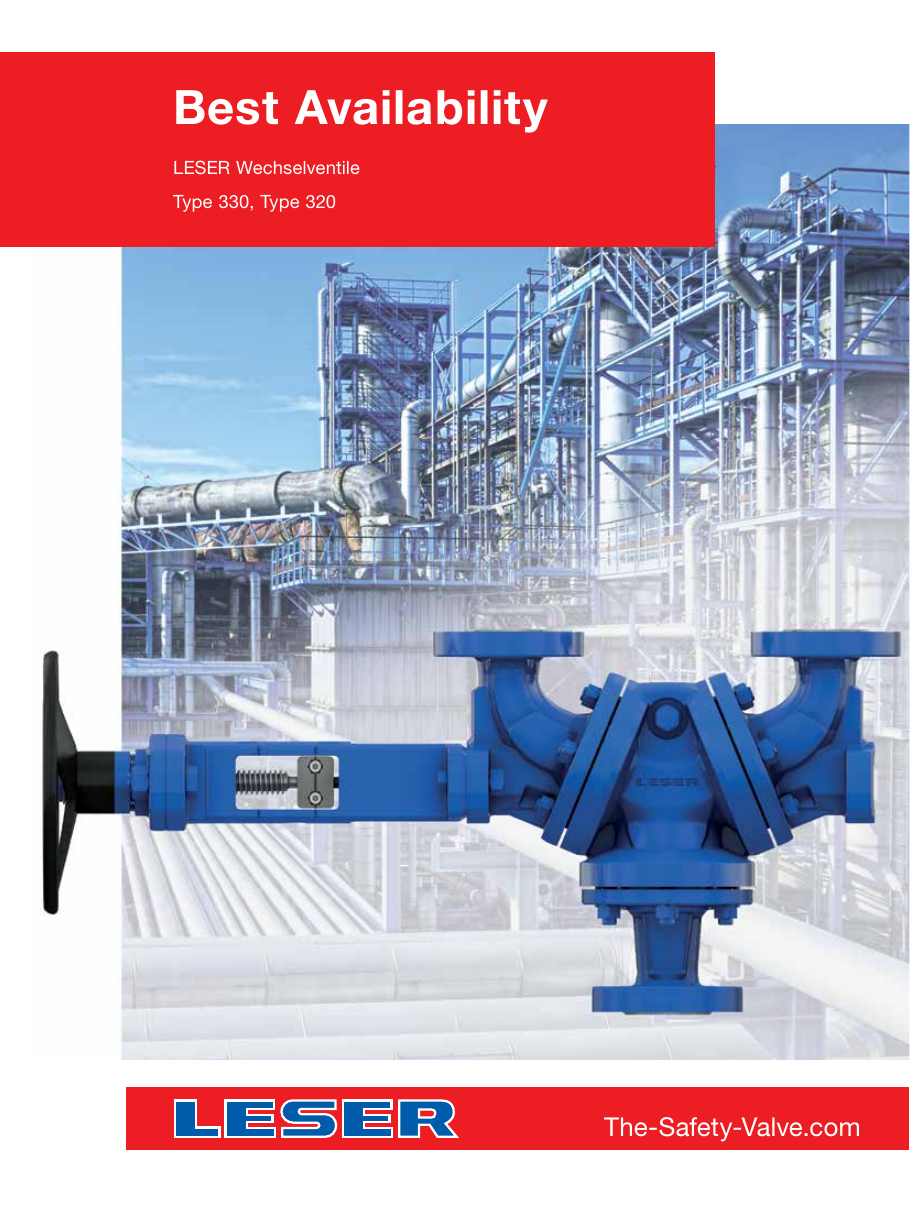

LESER GmbH Type 330 Compact | LESER - The Safety Valve – Photo (LESER GmbH datasheet S. 1)
Photo · LESER GmbH datasheet · S. 1

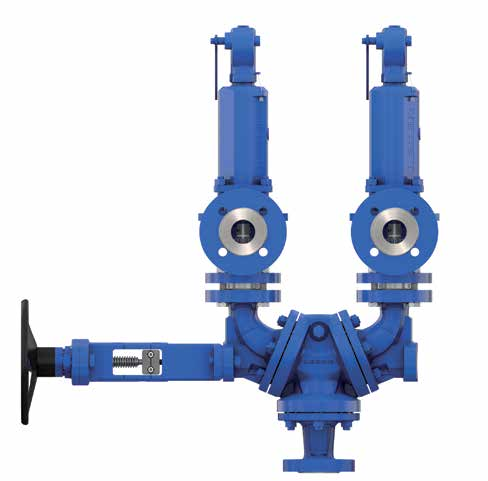

LESER GmbH Type 330 Compact | LESER - The Safety Valve – Photo (LESER GmbH datasheet S. 3)
Photo · LESER GmbH datasheet · S. 3
LESER GmbH Type 330 Compact | LESER - The Safety Valve – Photo (LESER GmbH datasheet S. 4)
Photo · LESER GmbH datasheet · S. 4

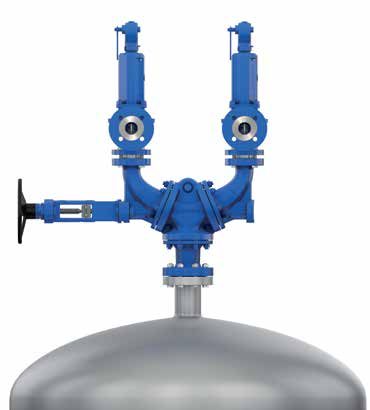

LESER GmbH Type 330 Compact | LESER - The Safety Valve – Photo (LESER GmbH datasheet S. 7)
Photo · LESER GmbH datasheet · S. 7

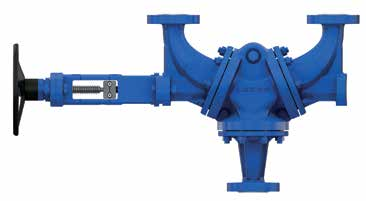

LESER GmbH Type 330 Compact | LESER - The Safety Valve – Drawing (LESER GmbH datasheet S. 1)
Drawing · LESER GmbH datasheet · S. 1
LESER GmbH Type 330 Compact | LESER - The Safety Valve – Drawing (LESER GmbH datasheet S. 4)
Drawing · LESER GmbH datasheet · S. 4
LESER GmbH Type 330 Compact | LESER - The Safety Valve – Page preview (LESER GmbH datasheet S. 2)
Page preview · LESER GmbH datasheet · S. 2
