Library› HVAC› Refrigeration› Refrigeration Compressor (Reciprocating)› Sabroe HPC 104 S
Sabroe

HPC 104 S

Refrigeration Compressor (Reciprocating) · Refrigeration

Technical data from manufacturer or class sources · not yet verified by a person
1,340 kgWeight

Sabroe HPC 104 S — High-pressure single-stage reciprocating compressor (50 bar HP design) for refrigeration and heat pump applications with condensing temperatures up to 77 °C; R717, R744.

Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Airflow (m³/h)226
Speed (1/min)500–1800
Weight (kg)1030
Cylinders4
Bore x stroke (mm)100 x 80
Max. condensing temperature (°C)77
Design pressure hp (bar)50
Swept volume at 1500 RPM226 m3/h🔖
Swept volume at 1800 RPM271 m3/h🔖
Gewicht (kg)1340 kg🔖
Sound pressure level83 dB(A)🔖
📄
Download datasheet (PDF) (3531 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“High-pressure hybrids of CMO and SMC reciprocating compressors, with swept volumes of 100–1100 m3/h The blocks of the compressor units in the HPO/HPC/HPX range are cast in high-strength ductile iron,…”

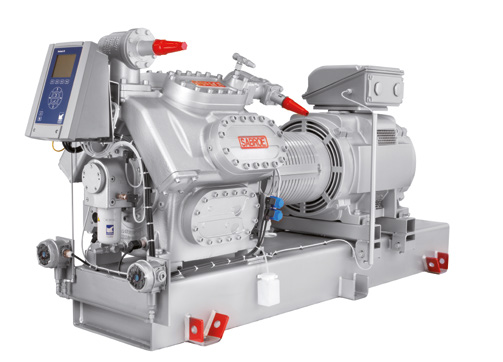

Sabroe HPC 104 S – Photo (Sabroe datasheet S. 1)
Photo · Sabroe datasheet · S. 1

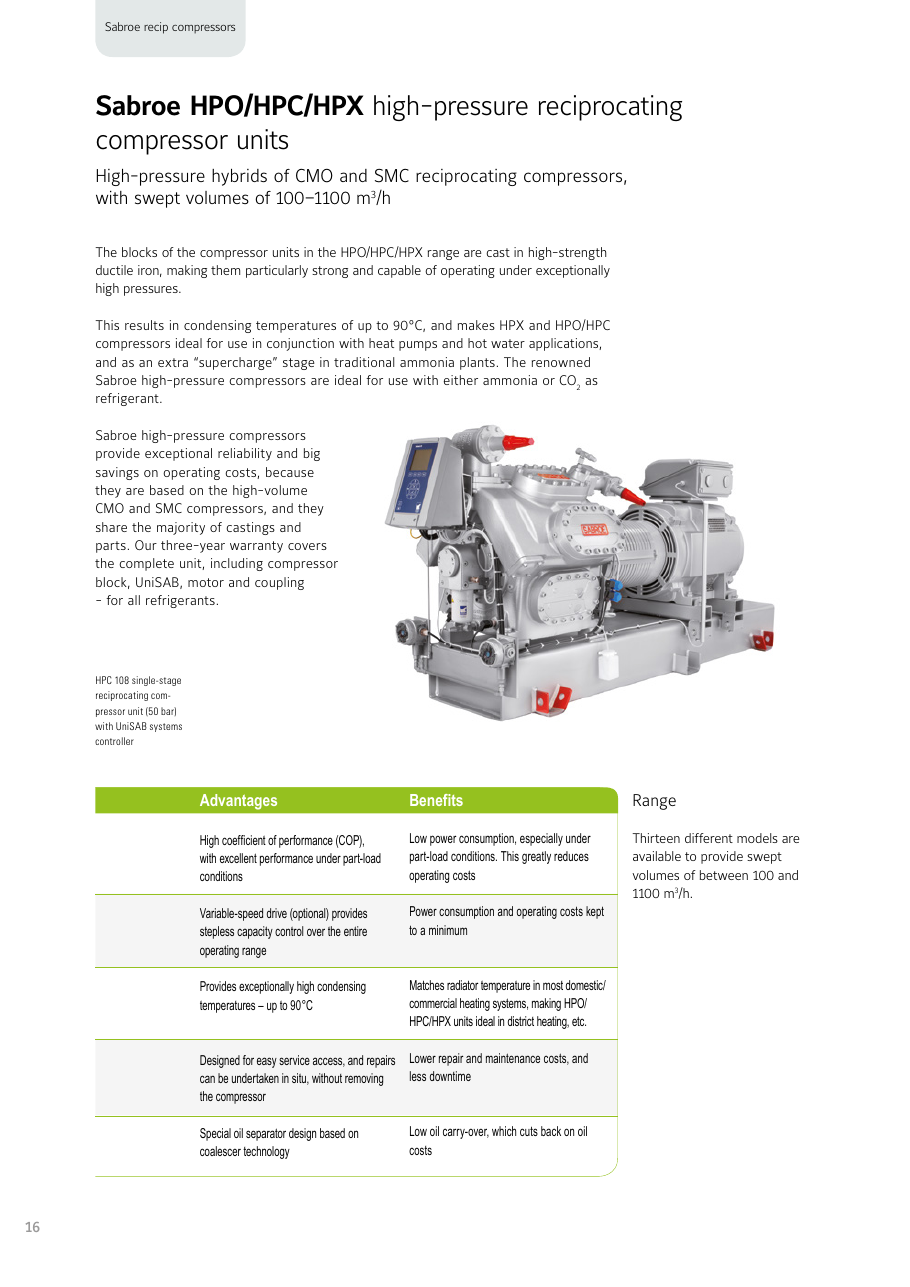

Sabroe HPC 104 S – Drawing (Sabroe datasheet S. 1)
Drawing · Sabroe datasheet · S. 1

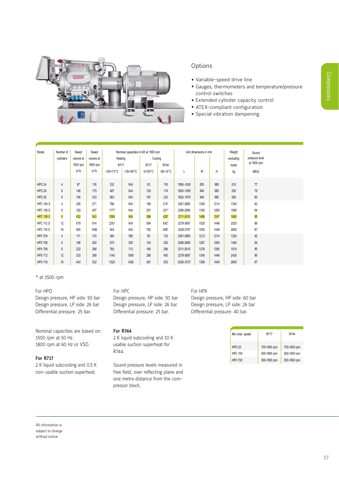

Sabroe HPC 104 S – Drawing (Sabroe datasheet S. 2)
Drawing · Sabroe datasheet · S. 2
Source: Sabroe HPC 104 S datasheet, p. 1
