GX6500

VHF Radio · GMDSS

Class-certified type (DNV register) · technical data sheet not yet verified​‌⁠⁠⁠⁠⁠​‍‌‌⁠⁠‍​⁠⁠‍‍⁠

The Standard Horizon GX6500 is a marine VHF radiotelephone. It is normally installed at the bridge radio console with its antenna high on the vessel. It is designed for ship-to-ship, ship-to-shore, port and safety voice communication. The operating principle relies on radio-frequency voice transmission and reception in the VHF marine band. Compared with neighbouring models, the relevant differences are control layout, remote stations, approval configuration and antenna arrangement; these must be confirmed from the installed documentation rather than inferred from the model designation alone. Service and survey attention should concentrate on transmit/receive performance, audio, antenna/feeder condition and normal/emergency power. For exact ratings, dimensions, tolerances, test limits and model-specific settings, refer to the manufacturer documentation for the exact figure.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Channel Spacing25 kHz
Frequency Stability±3 ppm _4' F to +140' F (-20' C to +60' C)
Emission TypeG3E(Voice),G2B(DSC),GXW(AIS:GX65001Eonly)
Antenna Impedance50 Cl
Supply Voltage13.8 VDC ± 20 %
Current ConsumptionTX: 5.0A/ 1.0A(TX: 25 W / 1 W)
Operating Temperature_4' F to +140' F (_20' C to +60' C)
Waterprooi ratingIPX8 (Sleet or 1.5 meters lor 30 minutes)
DscYes
IMO CompliantYes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Standard Horizon GX6500 is a marine VHF transceiver with integrated dual channel AIS receiver and Class B AIS transponder, designed for use in marine communication.

Applications

  • marine communication
  • collision avoidance

Features

  • integrated dual channel AIS receiver
  • Class B AIS transponder
  • AIS target display
  • ITU Class D compliance
  • NMEA 2000 and NMEA 0183 compatible
  • 66 Channel External GPS antenna included

Standards

  • ITU-R M493-13
Standard Horizon GX6500 – Drawing (58bede91b9a9_S1-2 S. 1)
Drawing · 58bede91b9a9_S1-2 · S. 1

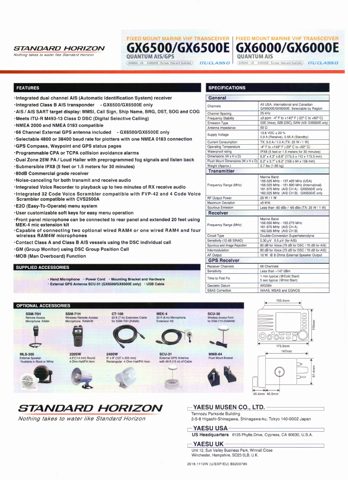

Standard Horizon GX6500 – Drawing (58bede91b9a9_S1-2 S. 2)
Drawing · 58bede91b9a9_S1-2 · S. 2
Source: Standard Horizon GX6500 datasheet, p. 2
