ECDIS · Radar & ECDIS
SAM Electronics CHARTPILOT 1100 is listed in this library as a marine bridge navigation unit in the Radar & ECDIS / ECDIS category. Equipment of this class is typically installed on the navigation bridge with sensor, scanner, processor, display, and interface components distributed as required by the installation. Its shipboard purpose is to provide the bridge team with radar-derived or electronically presented navigational information for collision avoidance, position monitoring, and situational awareness. The exact piping, electrical, control, foundation, and accessory arrangement depends on the vessel and the supplied configuration. No additional verified rating, capacity, weight, dimension, or operating limit is provided in the source entry. Where adjacent models in the same product family differ in rating, size, materials, control options, certification, or accessories, refer to the manufacturer documentation for the exact model-specific differences.

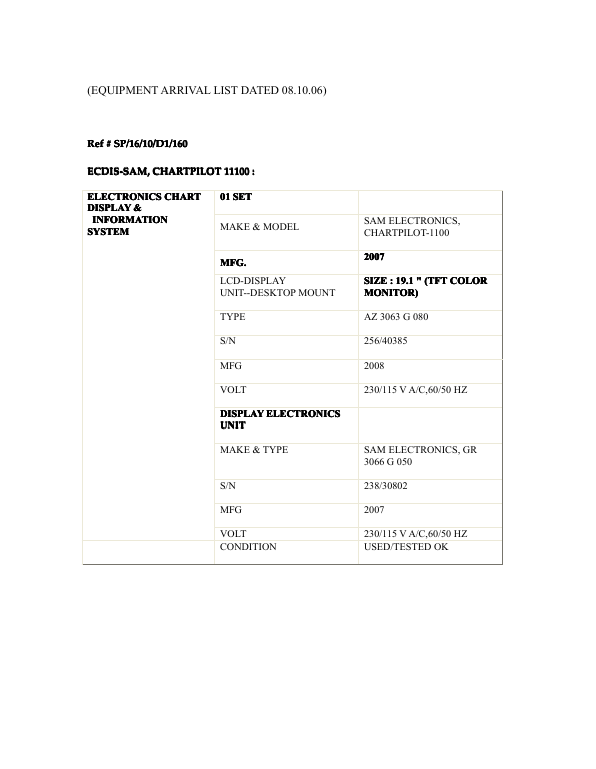

Photos, drawings and page previews from this model’s datasheet or catalog.
The CHARTPILOT-1100 is an ECDIS system that provides electronic navigation charts and information.
Other models of the same equipment type, SAM Electronics first.
What our service work and the manufacturer documentation say about keeping this model running.
Check power supplies, scanner and antenna condition, bearing and range performance, heading and position inputs, target presentation, alarms, interfaces, cooling, event logs, and any approved performance monitor. Configuration and alignment work should follow manufacturer and flag/class requirements.
Typical critical spares include approved fuses, fans or filters, interface and network components, operator-control items, and scanner/transceiver service parts according to the vessel's maintenance strategy. Refer to manufacturer documentation for exact parts.
